DES-3028EOL EOS
Hallatav 2 taseme kommutaator, 24 x 10/100 Мbit/s porti + 2 x 1000BASE-T porti + 2 x 1000BASE-T/SFP kombo porti
Kirjeldus
- High Port Density 10/100 Switch
- Optimized for Low Cost & Rich Features
- 4 Gigabit Uplink Capacity
- 4K VLAN & ACL Support
- Secure/Effective Management with RADIUS/TACACS+,Single IP Management, SSH/SSL Support
The DES-3028 switch is a managed Layer 2 Ethernet switch designed as the premium devices in the entry-level network management category. The switch offers very rich functions to let SMB and even enterprises set up a secure and effective departmental network at affordable cost. Outstanding features include high port densities, 4 Gigabit uplinks, comprehensive network security, granular bandwidth control and extensive network management. With DES-3028, businesses can now optimize their networks at both the function and cost levels for maximum results.

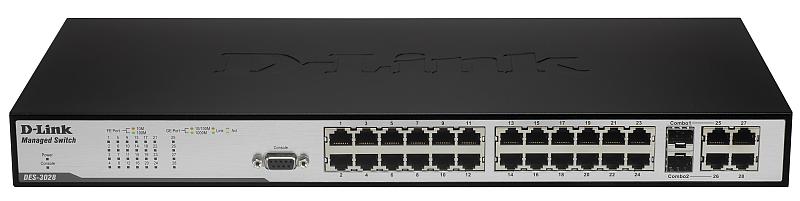

The DES-3028 has 24 Ethernet ports in low profile rack-mount case. The switch is equipped with 2 Gigabit uplinks, with the SFP supporting both fiber Gigabit and 100BASE-FX fiber connection for specific applications.
The DES-3028 supports many security features including Access Control List (ACL), 802.1X Port-Based/MAC-Based Access Control, 802.1X Guest VLAN, and RADIUS/TACACS+ authentication. To prevent malicious attack and virus/worm affection from overwhelming the switch with unnecessary workload, the DES-3028 provides D-Link Safeguard Engine and CPU Interface Filtering functions to increase the switch's reliability and availability.
To enhance network resilience, the DES-3028 provides Spanning Tree protocols, including 802.1D, 802.1w and 802.1s for redundant bridge paths. 802.3ad Link Aggregation provides the aggregated bandwidth between switches or server, For Quality of Service (QoS), it supports 802.1p Priority Queues and packet classification based on TOS, DSCP, MAC, IPv4, VLAN ID, Protocol type, User Defined Packet Content, enabling Internet voice, video and streaming media applications to run smoothly.
Network administrators can define throughput levels for each port to manage bandwidth. The bandwidth control feature provides fine granularity with the ability to define limits down to 64Kbps segments. Broadcast storm control can reduce the level of damage that a virus attack can do to the network. The switch provides IGMP snooping to control multicast transmission, and port mirroring to facilitate diagnostics.
The DES-3028 supports standard-based management protocols such as SNMP, RMON, Telnet, web-based GUI, SSH/SSL security authentication and DHCP Relay Option 82. With DHCP auto-configuration, the administrator can pre-set configurations and save them in a TFTP server; individual switches can boot their IP from the server and load in the pre-set configurations. D-Link Single IP Management simplifies and speeds up management tasks, allowing multiple switches to be configured, monitored and maintained from any workstation running a web browser through one unique IP address. A virtual stack of the DES-3028/3052 switches can be managed as a single object, with all units identified by a single IP address.
The DES-3028 has 24 Ethernet ports in low profile rack-mount case. The switch is equipped with 2 Gigabit uplinks, with the SFP supporting both fiber Gigabit and 100BASE-FX fiber connection for specific applications.
The DES-3028 supports many security features including Access Control List (ACL), 802.1X Port-Based/MAC-Based Access Control, 802.1X Guest VLAN, and RADIUS/TACACS+ authentication. To prevent malicious attack and virus/worm affection from overwhelming the switch with unnecessary workload, the DES-3028 provides D-Link Safeguard Engine and CPU Interface Filtering functions to increase the switch's reliability and availability.
To enhance network resilience, the DES-3028 provides Spanning Tree protocols, including 802.1D, 802.1w and 802.1s for redundant bridge paths. 802.3ad Link Aggregation provides the aggregated bandwidth between switches or server, For Quality of Service (QoS), it supports 802.1p Priority Queues and packet classification based on TOS, DSCP, MAC, IPv4, VLAN ID, Protocol type, User Defined Packet Content, enabling Internet voice, video and streaming media applications to run smoothly.
Network administrators can define throughput levels for each port to manage bandwidth. The bandwidth control feature provides fine granularity with the ability to define limits down to 64Kbps segments. Broadcast storm control can reduce the level of damage that a virus attack can do to the network. The switch provides IGMP snooping to control multicast transmission, and port mirroring to facilitate diagnostics.
The DES-3028 supports standard-based management protocols such as SNMP, RMON, Telnet, web-based GUI, SSH/SSL security authentication and DHCP Relay Option 82. With DHCP auto-configuration, the administrator can pre-set configurations and save them in a TFTP server; individual switches can boot their IP from the server and load in the pre-set configurations. D-Link Single IP Management simplifies and speeds up management tasks, allowing multiple switches to be configured, monitored and maintained from any workstation running a web browser through one unique IP address. A virtual stack of the DES-3028/3052 switches can be managed as a single object, with all units identified by a single IP address.
Põhiomadused
Liidesed
Tootlikkus
Indikaatorid
Teise taseme funktsioonid
8 porti igas grupis / 6 gruppi ühel seadmel
VLAN
Teenuse kvaliteet (QoS)
- pordi number
- VLAN ID
- TCP/UDP pordi number
- МАС-aadress
- IP v4
- 802.1р prioriteet
- TOS
- DSCP
- protokolli tüüp
- paketi sisu
Ligipääsu juhtimine
(max 256 profiili / reeglit)
- pordi number
- VLAN ID
- 802.1p prioriteet
- МАС-aadress
- IPv4
- DSCP
- protokolli tüüp
- TCP/UDP pordi number
- Paketi sisu
- Aeg
Võrku ligipääs / Turvalisus:
Ülekanderiba juhtimine:
kuni 2 Мb: 64 Кb sammuga
kuni 100 Мb: 1 Мb sammuga
rohkem 100 Мb: 8 Мb sammuga
Juhtimine
MIB toetus
