DSL-2640U/RA

Wireless N150 ADSL2+ Modem Router
Where to buy

Description

ADSL port and 4-port switch
ADSL router is equipped with a port for connecting to ADSL line. Built-in 4-port switch allows you to connect computers equipped with Ethernet adapters, game consoles and other devices to your network. In addition, any Ethernet port of the device can be used to connect to a private Ethernet line.

Wireless interface
You can quickly create a wireless network at home or in the office, which will allow your employees or members of your family to connect to a wireless network almost anywhere (within range of a wireless network.) The router can operate as an access point for connecting wireless devices, which support 802.11b, 802.11g and 802.11n standards. The device supports several security standards (WEP, WPA/WPA2), MAC address filtering and the WPS function. In addition, the device is equipped with a button for switching Wi-Fi network off/on. If needed, for example, when you leave home, you can turn off the router's wireless network at the touch of a button, while the devices connected to the LAN ports on the router will stay online.

Security
The DSL-2640U wireless router includes a built-in firewall. Enhanced security functions minimize threats of hackers and prevent intrusions to your network and block access to unwanted websites for users of your local network.

Easy setup and update
You can configure the settings of the DSL-2640U wireless router via the user-friendly web-based interface (the interface is available in several languages). Now you can simply update the firmware: the router itself finds approved firmware on D-Link update server and notifies when ready to install it.

General features

Hardware
Interfaces
• ADSL: 1 RJ-11 port
• LAN: 4 RJ-45 10/100BASE-TX Fast Ethernet ports with auto MDI/MDIX
• WLAN: built-in 802.11b, g and n wireless interface

Frequency range
• 2412~2484MHz

Wireless data rate
• 802.11b: 11, 5.5, 2, 1Mbps
• 802.11g: 54, 48, 36, 24, 18, 12, 9, 6Mbps
• 802.11n
  HT20: 150, 130, 117, 104, 78, 52, 39, 26, 13Mbps
  HT40: 150, 130, 117, 104, 78, 52, 39, 26, 13Mbps

Transmitter output power
The maximum value of the transmitter power will vary in accordance with the rules of the radio-frequency regulation in your country
• 802.11b: 16.5~18.5dBm
• 802.11g: 13.5~16.5dBm
• 802.11n: 13.5~16.5dBm

Modulation Schemes
• 802.11b: CCK (11, 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps), DSSS
• 802.11g: PSK/CCK, DBPSK, DQPSK, OFDM, BPSK, QPSK 16QAM, 64QAM
• 802.11n: PSK/CCK, DBPSK, DQPSK, OFDM, etc.

ADSL Standards
• ADSL: Multi-mode, ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt) Annex A, ITU-T G.992.2 (G.lite) Annex A, ITU T G.994.1 (G. hs)
• ADSL2: ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.4 (G.lite.bis) Annex A
• ADSL2+: ITU-T G.992.5 Annex A/L/M

Software
WAN connection types
• ADSL:
  PPPoE
  PPPoA
  IPoA
  Static IP
  Dynamic IP
  Bridge
• Ethernet:
  PPPoE
  Static IP
  Dynamic IP
  Bridge

Wireless network
• IEEE 802.11n standard, IEEE 802.11b/g compliant
• WEP data encryption
• WPA/WPA2 security supporting TKIP, AES and TKIP+AES
• MAC-based access to wireless network
• PBC method of WPS
• Managing connected stations
• Advanced Settings

ATM/PPP protocols
• Bridged and routed Ethernet encapsulation
• VC/LLC-based multiplexing
• ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs)
• ATM Adaptation Layer Type 5 (AAL5)
• ITU-T I.610 OAM F4/F5 loopback
• ATM QoS
• PPP over ATM (RFC 2364)
• PPP over Ethernet (PPPoE)
• Keep-alive for PPP connections

Network protocols and functions
• DHCP server/client/relay
• DNS relay
• Dynamic DNS
• Static IP routing
• Remote access
• Network statistics for each interface
• IGMP proxy
• IGMP snooping
• RIP
• UPnP
• VLAN support
• WAN ping respond
• Supports SIP
• Supports RTSP

Firewall and access control
• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
• IP filters
• MAC filter
• URL Filter
• DMZ
• Prevention of ARP and DDoS attacks
• Virtual servers

QoS
• Interface grouping
• VLAN priority (802.1p)

Configuration and management
• Multilingual web-based interface for configuration and management
• Access via TELNET
• Firmware update via web-based interface
• Automatic notification of new firmware version
• Saving/restoring configuration to/from file
• Support of remote logging
• Automatic synchronization of system time with NTP server and manual date/time setup
• Ping function


LEDs
• POWER
• DSL
• INTERNET
• WLAN
• LAN 1-4
• WPS
• USB

Power
• External power adapter 12VDC/0.5A

Buttons
• ON/OFF power switch
• RESET button to restore factory defaults
• WPS/WLAN button

Operating temperature
• 0 to 40°C

Storage temperature
• -20 to 70°C

Humidity
• 5% to 95% non-condensing

Certificates

Order info

DSL-2640U/RA/U1A Wireless N150 ADSL2+ Modem Router

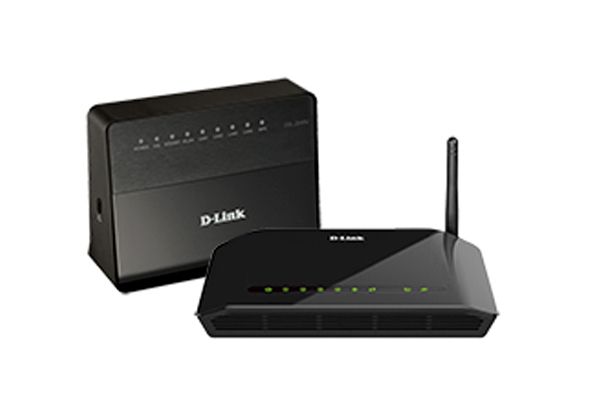

Pictures

DSL-2640U/RAU2
Вид спереди
Вид справа
Вид сзади
DSL-2640U/RAU1
Вид спереди
Вид справа
Вид сзади
