DCS-3410EOL EOS

Day & Night poe Network camera with 3g mobile video support

Description

DAY & NIGHT CAMERA SURVEILLANCE
The DCS-3410 is a versatile IP camera designed for both day and night, as well as indoor and outdoor applications when an outdoor enclosure is added. The camera is equipped with 2 digital input ports for sensors or alarms, 1 digital output port for an alarm, and 1 power output port for an LED illuminator. An RS-485 port is also included for external pan/tilt devices. The DCS-3410 is Power over Ethernet (PoE) compliant in order to provide easy installation by eliminating the need for a power cable when used with PoE enabled networks. Additional items can be added to the DCS-3410 such as an Auto iris lens, IR LED lens, night vision illuminator, and an outdoor enclosure which is vandal and weather proof.

3G MOBILE VIDEO SUPPORT
The live video feed from the DCS-3410 can be transferred over a 3G cellular network and displayed on a compatible mobile phone or PDA with a 3G video player. This feature offers users a flexible and convenient way to remotely monitor their home or office in real time, from anywhere within the 3GPP service area.

DUAL CODEC & MULTIPLE PROFILES
Simultaneous MJPEG and MPEG-4 video streams allow systems to be optimized for both image quality and bandwidth efficiency. In addition, the DCS-3410 supports 3 separate profiles at the same time: web viewing (CIF and MPEG-4), 3G mobile viewing (QCIF and MPEG-4), and recording (D1 and MJPEG). This kind of versatility enables a wide variety of security applications, whether it’s keeping an eye on the office during lunch through a 3G enabled PDA, managing an organized directory of recorded video files on a network attached storage (NAS) device, or fine-tuning a security system in real time over the local network.

General features

CAMERA SPECIFICATIONS
+ Built-in 1/3-inch CCD sensor
+ Minimum illumination: 0.3 lux @ f1.6
(typical); 0 lux (10 meter range with optional IR lens)
+ CS mount lens: 6mm, f1.6
+ Resolution: 470 TV lines
+ AGC / AWB / AES
+ Electronic shutter:
NTSC: 1/60 ~ 1/100000 sec.
PAL: 1/50 ~ 1/110000 sec.
+ Lens mount supports Auto Iris lens or IR lens (10 meter range)]
+ Field of view: 58° diagonal, 34° vertical, 45° horizontal

LED INDICATORS
+ Link & activity
+ Power

RESET BUTTON
+ Reset to factory default settings

I/O CONNECTOR
+ 2 Input:
Photo relay
Active high 12V,+/-3V, dropout: 0 VDC
+ 1 Output:
Photo relay
Close circuit current: AC 70mA or DC 100mA; 40Ohm
Open circuit voltage: 240 VAC or 350VDC
+ Power output: 12V DC 200mA

RS-485
+ Supports external PT devices

MEMORY
+ SDRAM: 64 MB
+ Flash ROM: 8 MB

VIDEO FEATURES
+ Adjustable image size and quality
+ Time stamp and text overlays
+ Motion adaptive de-interlacing

VIDEO RESOLUTION
+ NTSC support:
up to 30 fps at 176x120
up to 30 fps at 352x240
up to 30 fps at 704x480
+ PAL support:
up to 25 fps at 176x144
up to 25 fps at 352x288
up to 25 fps at 704x576

VIDEO ALGORITHM SUPPORT
+ Simultaneous MPEG4 & MJPEG dual format compression
+ Simultaneous profile support for web viewing, 3G mobile viewing, and video recording
+ JPEG compression for still images

DIGITAL ZOOM
16X

MICROPHONE
+ Omni-directional
+ Frequency 50 to 16,000 Hz
+ S/N ratio over 42 +/- 3 dB

AUDIO
+ Sampling rate:
GSM-AMR: 12.2 Kbps
ADPCM: 8 Kbps
+ Full duplex audio communication

NETWORK CONNECTIVITY
+ 10/100 Mbps Fast Ethernet auto negotiation
+ Power over Ethernet

NETWORK PROTOCOL SUPPORT
+ IPv4, ARP, TCP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP AV, RTP, RTSP, RTCP

REMOTE MANAGEMENT
+ Configuration can be accessed via web browser
+ Take snapshots and save to hard drive via web browser

SECURITY
+ Administrator and user group protected
+ Password authentication

SYSTEM REQUIREMENTS
+ Operating System: Microsoft Windows 2000, XP, Vista
+ Browser: Internet Explorer, Firefox, Netscape, Mozilla, Opera browser

SURVEILLANCE SOFTWARE FUNCTIONS
+ Remote management and control of up to 32 IP cameras
+ View up to 32 cameras on one screen
+ Supports all management functions provided in web interface
+ Scheduled motion triggered or manual recording options

OPTIONAL ACCESSORIES
+ Auto Iris lens
+ IR lens for night vision
+ Illuminator for night vision
+ External Speakers
+ External all-weather vandal proof housing

POWER INPUT
100-240V AC, 50/60 Hz, 0.4A

POWER OUTPUT
12V DC, 1.25A

POWER SUPPLY
+ External AC to DC switching power adapter
+ Type: USA/UK/EUR/AUS/CN

POWER CONSUMPTION
12.5 watts maximum

DIMENSIONS
177mm x 78mm x 60mm

WEIGHT
577.8 grams

OPERATING TEMPERATURE
0° to 40°C (32° to 104°F)

STORAGE TEMPERATURE
-20° to 70°C (-4° to 158°F)

HUMIDITY
20 to 80% non-condensing

EMISSION (EMI), SAFETY & OTHER CERTIFICATIONS
+ FCC
+ IC
+ CE
+ C-Tick

PACKAGE INCLUDES
+ DCS-3410 IP camera
+ 12V 1.25A external power adapter
+ Cat.5 Ethernet cable
+ Quick installation guide
+ Master CD
+ Camera stand bracket

Certificates

Order info

Pictures

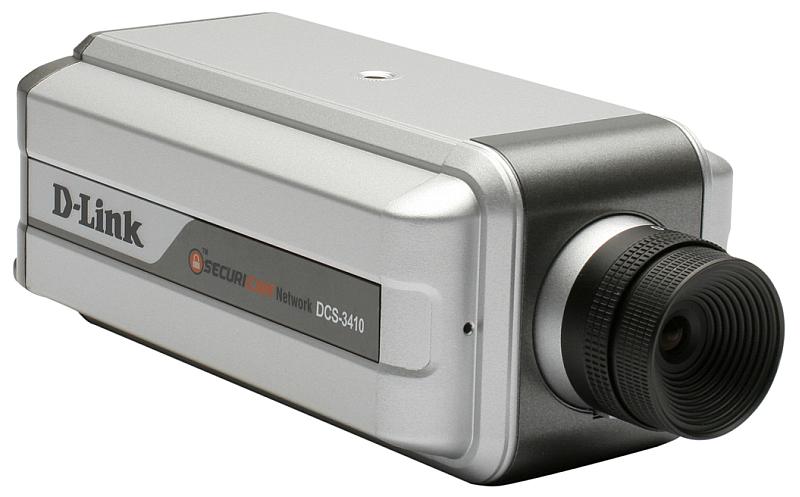

DCS-3410

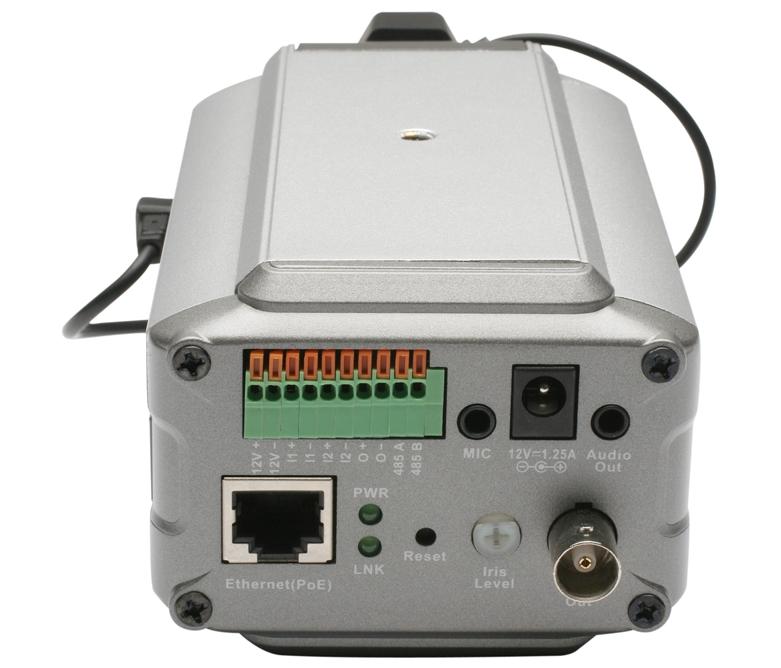

Back view
