Ürün Özellikleri:
External Cloud Network HD-camera with PoE and Night Vision
EOL
Genel Özellikler:

Fiziksel Özellikler
Hardware
Interfaces
• Port 10/100 BASE-TX Fast Ethernet with support for PoE (802.3af Class 2)
• microSD card slot 1
Indicators • Link / Activity / Nutrition
Buttons • Reset button
Power connector • Power connector (DC)
Housing • Protection against dust and water (IP-65 standard)
Camera Settings
Main characteristics
• 1/4-inch megapixel CMOS-sensor with progressive scan
• Focal length: 3.45 mm
• Aperture: F2.0
• Viewing angles:
- 60 ° (horizontal)
- 36 ° (vertical)
- 70 ° (diagonal)
• 10x digital zoom
• Minimum illumination:
- Color Mode: 1 lux @ F2.0
- B / W operation: 0.5 lux @ F2.0
- B / W mode with IR illumination: 0 Lux
• The minimum distance to the object: 500 mm
• Built-in ICR-filter
• Built-in PIR-sensor (5 m)
• The distance of IR illumination: 5 m
• Built-in microphone
• Waiting time: from 1 / 7.5 to 1/10000
Features Image
• Adjust image size and quality, frame rate and data rate
• Time stamp and text insertion
• Customizable windows for motion detection
• Customizable privacy zones masks
• Setting the shutter speed, brightness, color saturation, contrast and sharpness
Video Compression
• Video compression format H.264 / MJPEG
• H.264 multicast broadcasting
• Compression in JPEG format for still pictures
Video Resolution
• 16: 9 - 1280 x 720, 800 x 448, 640 x 360, 480 x 272 320 x 176 30 frames / sec 2
• 4: 3 - of 960 x 720 to 800 x 592, 640 x 480, 480 x 352 320 x 240 30 frames / sec 2
Audio
• AAC
• G.711
Net
Network Protocols
• IPv6
• IPv4
• ARP
• TCP / IP
• UDP
• ICMP
• DHCP-Client
• NTP-client (D-Link)
• DNS-client
• DDNS-client (D-Link)
• SMTP-client
• FTP-client
• HTTP / HTTPS
• Samba-client
• PPPoE
• UPnP
• UPnP port forwarding
• RTP / RTSP / RTCP
• IP-address filtering
• QoS
• CoS
• DSCP
• Multicast
• IGMP
• ONVIF
• Bonjour
• SNMP v1, v2c, v3
Security
• Protection of the Administrator account and user groups
• Password authentication
• HTTP authentication and RTSP
Control
Event Management
• Motion Detection
• Detection of sound
• Event notification and upload still images / video clips via e-mail or FTP
• Support for multiple SMTP servers and FTP
• Multiple event notifications
• Multiple recording methods for backup
Remote control
• Creating still pictures / videos and save to your local hard drive through the Web-browser
• Interface settings available through the Web-browser
Manage mobile devices • Applications and mydlink Lite mydlink + mobile with iOS and Android
Additional software D-ViewCam ™
• Remote management / control of up to 32 cameras
• Viewing images on a single screen: Up to 32 cameras
• Supports all management functions available through the Web-based interface
• Record Options for triggering the sensor, scheduled or manually
System requirements
System requirements for Web-interface
• Operating System: Microsoft Windows 8/7 / Vista / XP, Mac OS X 10.6 or higher
• Web-browser: Internet Explorer, Firefox, Safari
System requirements for D-ViewCam ™
• Operating System: Microsoft Windows 8/7 / Vista / XP
• Web-Browser: Internet Explorer 7 or higher
• Protocol: Standard TCP / IP
Physical parameters
The weight • 132 g ± 5%

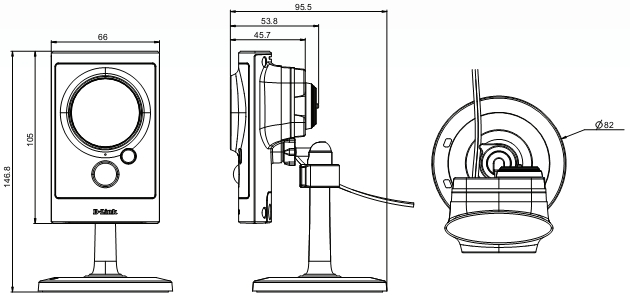

Sizes • 66 x 105 x 53,8 mm
terms of Use
Food
• The power adapter (not supplied)
- Output: 5V DC 1.2 A
• The power cable for Ethernet (PoE) 802.3af (Class 2)
Power consumption • Max. 5.5 W ± 5%
Temperature
• Working: -25 ° to 45 ° C
• Storage: -20 ° to 70 ° C
Humidity
• Operating: 20% to 80% (non-condensing)
• Storage: 5% to 95% (non-condensing)
Contents of delivery
• Network Camera DCS-2310L / UPA
• Stand Camera
• Ethernet-Cable
• CD
• Quick Installation Guide
• Warranty Card
• Mounting Kit
Other
Certifications
• CE
• CE LVD
• FCC
• C-Tick
• IP-65


1 The camera is compatible with cards microSD / SDHC / SDXC up to the standard 3.01. The camera is not compatible with standard cards 4.x.
2 Frame rate transmission of video in real time may vary depending on the network conditions and the method used.
