RSP-1000-48EOL

External power supply for DAS-4672, 1008 W

Kirjeldus


The RSP-1000-48 external power supply is ideal for applying with the D-Link DAS-4672 IP DSLAM, providing the necessary parameters for operation of the DAS-4672.

RSP-1000-48 supports the following nominal values of specifications: 1008 W output power, 21 A output current and 48 V output voltage. In addition, the device provides built-in protection mechanisms against overload, output voltage exceedence, short circuit and high temperatures.


Põhiomadused


Built-in protective mechanisms
• Overload protection is triggered when the output power exceeds the nominal value of 5%-35%
• Protection against the output voltage exceedance and short-circuit is triggered when the output voltage is from 56.6 V to 66.2 V
• Protection against high temperatures

Ventilation
• Built-in DC fan

Input voltage range
• 90 to 264 VAC
• 124 to 370 VDC

Range of the input AC voltage
• 47 Hz to 63 Hz

Leakage
• <2.0 mA at 240 VAC

Output voltage
• 48 V

Nominal output current
• 21 A

Range of output current
• From 0 to 21 A

Rated power output
• 1008 W

Dimensions
• 295 x 127 x 41 mm

Temperature
• Operating: -20 to 60 °C
• Storage: -40 to 85 °C

Humidity
• Operating: 20% to 90% non-condensing
• Storage: 10% to 95% non-condensing

MTBF
• 35,000 hours at rated voltage lines, maximum load, ambient temperature of 25 °C

Safety
• UL
• TUV


Sertifikaadid

Sidustooted

RSP-1000-48   External power supply for DAS-4672, 1008 W

Pildid

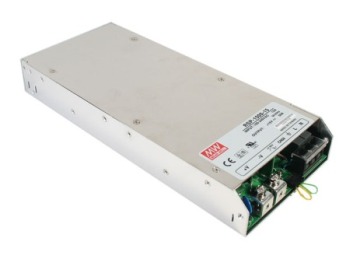

RSP-1000-48RSP-1000-48
