DCS-2100+EOL EOS

Internet Camera With Integrated Web Server & Motion Detection
היכן לקנות

תאור

Stand-alone System With Integrated Web Server
The DCS-2000 Internet Camera comes with a built-in CPU and Web server , providing a low-cost solution capable of solving demanding security and home/office monitoring needs. Its integrated Web server eliminates the need to connect the camera to a computer. Once installed, you use the built-in IP address to gain access to the camera, view live streaming video, and make changes to camera settings.

Web-based Remote Access
You can install your camera at home then view the images from anywhere in the world on a computer running Internet Explorer. Directly connected to the Internet without going through any computer, this camera is simple to install and easily integrates with your network environment. This makes this camera an ideal solution for remote surveillance away from home or office.

Multi-Camera Monitoring
Surveillance software is included to let you view up to 16 cameras on a single computer screen at one central location. Images can be recorded to your computer's hard drive manually or according to a pre-set schedule. The camera can be connected to external alarms and sensors, and you can set up automated email alerts for sending through the Internet to alarm you instantly of all unusual happenings.

Motion Detected Recording
Instead of recording 24 hours a day, 7 days a week, images can also be recorded only when motions are detected. This saves disk space and eliminates the time wasted to view unnecessary images. Images can be directly archived straight to your computer hard drive or to a Network Attached Storage. Playback consumes little time with triggered event browsing and fast database searching.

High-Quality Video & Sound
The camera uses MPEG-4 Short Header Mode to stream live video at up to 30 frames per second for real-time viewing. A built-in high-quality microphone allows you to listen while watching live images.

With or Without Wireless LAN
Two models are available: a standard camera, and a wireless camera equipped with 802.11b+ enhanced 22Mbps wireless speed. Both models come with a 10/100Mbps Fast Ethernet port for connection to broadband Internet (via a home gateway router) or to a wired network in a building.

מאפיינים כללים

Camera Specifications
- 1/3 inch color CMOS sensor, interlace scan mode
- 24-bit RGB, 640 x 480 resolution
- Operating System: pSOS+ (real-time O.S.)
- Automatic Gain Control (AGC): 24dB
- Automatic Exposure (AE)
- Automatic White Balance (AWB)
- Electronics shutter: 1/60 ~ 1/15000 second
- Minimum illumination: 2.5lux @ f1.4
- Lens mounting: standard CS mount type lens, 6.0mm, f1.8

Image (Video Setting)
- H.263+ (MPEG4 short header mode) data compression
- Compression ratio: 5 levels
- 3 adjustable image sizes and quality intelligent motion detection windows with flexible bit rate
- Time stamp and text overlay

Audio
24Kbps

Video Resolution
- Up to 30 fps at 160 x 120
- Up to 30 fps at 320 x 240

General I/O
- 1 opto-isolated sensor input (max. 12VDC 50mA)
- 1 relay output (max. 24VDC 1A, 125VAC 0.5A)

Alarms
- Motion detection (activity detection)
- Periodical image transfers though e-mail and upload to a server using FTP

Port
10/100Mbps 10BASE-T/100BASE-TX Fast Ethernet

LED Indicators (bi-color status)
- System power and status indicators
- Network link and speed indicators

Networking Protocols
TCP/IP, HTTP , SMTP, FTP , Telnet, NTP , DNS, DDNS, DHCP, UPnP

Security
- Administrator and user group protected
- Password authentication

Management
Configuration and system log via Web browser and FTP application remotely

Software Update
Via TCP/IP network

Viewing System Requirement
- Protocol: standard Internet TCP/IP suite
- Operating system: Microsoft Windows XP , 2000, ME or 98SE
- Browser: Internet Explorer 5.x or above

Wireless LAN
Standard
802.11b+

Reception Sensitivity Nominal Temp Range
- 22Mbps: 10-5 BER @ -80 dBm minimum
- 11Mbps: 10-5 BER @ -79 dBm minimum
- 5.5Mbps: 10-5 BER @ -83 dBm minimum
- 1Mbps: 10-5 BER @ -89 dBm minimum

Frequency Range
2.4 - 2.4835 GHz

Modulation Techniques
- Direct Sequence Spread Spectrum (DSSS)
- Packet Binary Convolutional Coding (PBCC)

Data Rates
- 22 Mbps
- 11 Mbps
- 5.5 Mbps
- 2 Mbps
- 1 Mbps
- Auto fall-back

Data Rate & Modulation
- 22Mbps: PBCC
- 11Mbps: PBCC or CCK
- 5.5Mbps/1.5db: PBCC or CCK
- 2Mbps/3db: Barker

Operating Channels
- North America (FCC): 11
- Canada (DOC): 11
- Europe (ETSI): 13
- Japan (MKK): 14

Antennas
2 detachable 2dBi Gain antennas (reverse SMA connectors)

Transmitter Output Power
15dBm 2dB

Operating Range
- Up to 80 m indoors
- Up to 250 m outdoors

Data Encryption
64-bit, 128-bit, 256-bit WEP (Wired Equivalent Privacy)




נתונים פיזיים

AC Power Input
Through 100 - 240 VAC, 50/60Hz external power

DC Power Input
12VDC 1.5A

Weight
Approx. 240 grams

Dimensions
135 (L) x 89 (W) x 57 (H) mm

Operating Temperature
5 C ~ 50 C

Storage Temperature
-10 C ~ 60 C

Humidity
20% ~ 90% non-condensing

Emission & Saftey
- FCC Class B
- CE Class B
- LVD (En60950)

תקנים

הורדות

DCS-2100+ Internet Camera with 10/100Mbit/s Fast Ethernet Port & 802.11b+ Wireless LAN

איורים

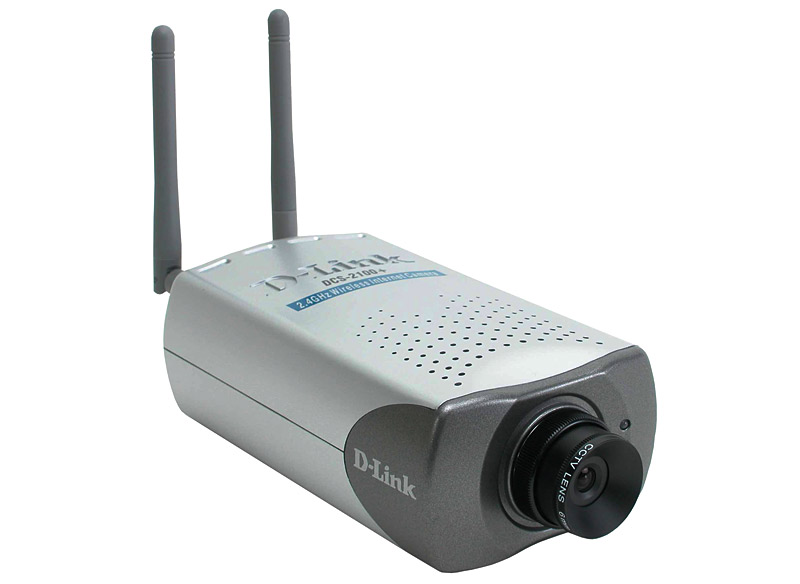

DCS-2100+
