DGS-1008D/GEEOL EOS

8-Port 10/100/1000 Desktop Switch
Where to buy

Description

Think green
D-Link takes the lead in networking industry to release Green Ethernet technology with its new series of Soho Gigabit switches. these environmentally-friendly devices decrease energy costs through the reduction of power consumption without sacrifcing operational performance or functionality, providing benefts to both the ecosystem and home/Soho users. they are designed to help conserve energy, protect our environment from harmful substances, and reduce waste by using recyclable packaging.

Conserving Energy
+ automatically powers down ports that have no link
+ budgets power output for different Ethernet cable lengths
+ complies with california’s stringent cEc and australia MEPS regulation requiring the use of more energy effcient power adapters.*

Protecting the environment
+ complies with RohS directive that restricts the use of certain hazardous materials.
+ complies with wEEE (waste Electrical and Electronic Equipment) directives that use recyclable packaging to help reduce waste that goes into the environment

General features

KEY FEATURES
+  Innovative Green Ethernet technology
+  Inexpensive Gigabit solution for Soho & SMb
+  8 10/100/1000Mbps Gigabit ports on cat.5 cable
+  16Gbps switching fabric
+  Auto MDI/MDIX cross over for all ports
+  Secure store-and-forward switching scheme
+  Full/half-duplex for Ethernet/Fast Ethernet speeds
+  Blazing 2000Mbps full duplex for Gigabit speed
+  IEEE 802.3x Flow control
+  Supports 9,600bytes Jumbo Frames
+  Supports IEEE802.1p QoS (4 Queues, Strict Mode)
+  Supports cable Diagnostic Function
+  RohS compliant
+  Plug-and-play installation

STANDARTS
+  IEEE 802.3 10baSE-t Ethernet (twisted-pair copper)
+  IEEE 802.3u 100baSE-tX Fast Ethernet (twisted-pair copper)
+  IEEE 802.3ab 1000baSE-t Gigabit Ethernet (twisted-pair copper)
+  ANSI/IEEE 802.3 Nway auto-negotiation
+  IEEE 802.3x Flow control
+  IEEE 802.1p QoS

NUMBER OF PORTS
8 10baSE-t/100baSE-tX/1000baSE-t ports

PROTOCOL
CSMA/cD

DATA TRANSFER RATES
+  Ethernet
  -10Mbps (half duplex)
  -20Mbps (full duplex)
+  Fast Ethernet
  -100Mbps (half duplex)
  -200Mbps (full duplex)
+  Gigabit Ethernet
  -2000Mbps (full duplex)

TOPOLOGY
Star

NETWORK CABLES
+  10BASE-T:
  -UTP CAT. 3, 4, 5 (100 m max.)
  -EIA/TIA-586 100-OHM STP (100 m max.)
+  100BASE-TX, 1000BASE-T
  -UTP CAT. 5, CAT. 5e (100 m max.)
  -EIA/TIA-568 100-ohm STP (100 m max.)

FULL/HALF DUPLEX
+  Full/half duplex for 10/100Mbps speeds
+  Full duplex for Gigabit speed

MEDIA INTERFACE EXCHANGE
Auto MDI/MDIX adjustment for all ports

LED INDICATORS
+   Per port: 100Mbps/1000Mbps speed
+  Per device: Power

TRANSMISSION METHOD
Store-and-forward

MAC ADDRESS TABLE
8K entries per device

MAC ADDRESS LEARNING
Automatic update

PACKET FILTERING/FORWARDING RATES (HALF DUPLEX)
+  Ethernet: 14,880 pps per port
+  Fast Ethernet: 148,810 pps per port
+  Gigabit Ethernet: 1,488,100 pps per port

RAM BUFFER
144Kbytes per device



DC INPUT
+  Linear Dc 7.5V/1A or 7.5V/1.5A
+  Switching 5V/2A

POWER CONSUMPTION
6 watts

OPERATING TEMPERATURE
0˚ to 40˚ c (32˚ to 104˚ F)

STORAGE TEMPERATURE
-10˚ to 70˚ c (14˚  to 158˚ F)

OPERATING HUMIDITY
10% to 90% Rh non-condensing

STORAGE HUMIDITY
5% to 90% Rh non-condensing

DEVICE DIMENSIONS (W x D x H)
192 x 118 x 32 mm
(7.5 x 4.5 x 1.2 inches)

EMISSION (EMI)
+  FCC Class B
+  ICES-003 Class B
+  CE Class B
+  C-Tick Class B
+  VCCI Class B

SAFETY
CUL

MTBF
1,611,344 hours

Certificates

Order info

DGS-1008D/GE  8-Port 10/100/1000 Desktop Switch

Pictures

DGS-1008D/GE
Back view

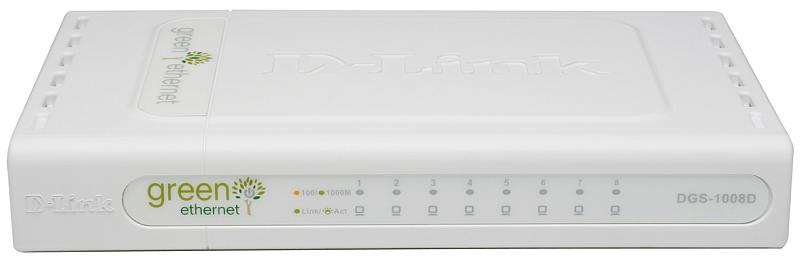

Front view
