DKVM-CB

1.8 m KVM Cable with VGA and PS/2

Description


DKVM-CB/A and DKVM-CB/B 1.8 m KVM cable are designed for connecting PC to the D-Link DKVM-4K/A and DKVM-4K/B KVM switch. The cables are equipped with 6-pin mini-DIN connectors for connecting to PS/2 keyboard and mouse ports on the PC and 15-pin HDB connectors for connecting to VGA port on the PC and on the KVM switch.

DKVM-CB/A and DKVM-CB/B combine several cables in one assembly, thus allowing you to save space on your table. Each connector has its own colour code (PC99), ensuring correct connection.


General features

  B A
Length • 1,8 m
Keyboard • One 6-pin mini-DIN connector (purple) (PS/2)  • Two 6-pin mini-DIN connectors (purple) (PS/2)
Mouse • One 6-pin mini-DIN connector (green) (PS/2) • Two 6-pin mini-DIN connectors (green) (PS/2)
Video • Two 15-pin HDB connectors (blue) (VGA)
Advanced features • Several cables in one assembly
• Connector colour coding
KVM switch* • DKVM-4K/B • DKVM-4K/A

*Note: The DKVM-CB KVM cable of B hardware version is compatible only with the DKVM-4K KVM switch of B hardware version. The DKVM-CB KVM cable of A hardware version is compatible only with the DKVM-4K KVM switch of A hardware version.

Certificates

Order info

DKVM-CB   1.8 m KVM Cable with VGA and PS/2

Pictures

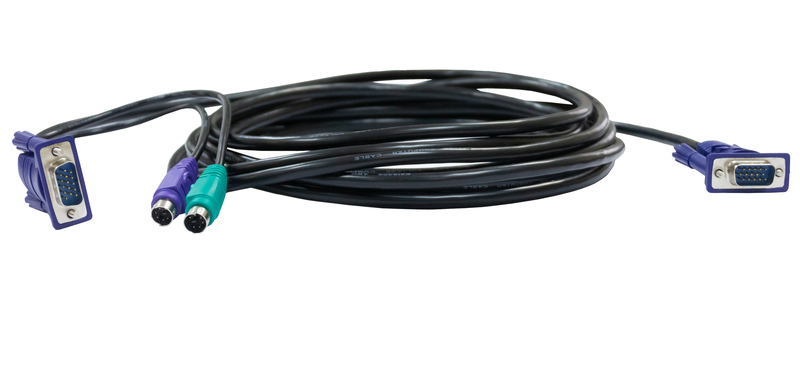

DKVM-CB/Bx
Front view

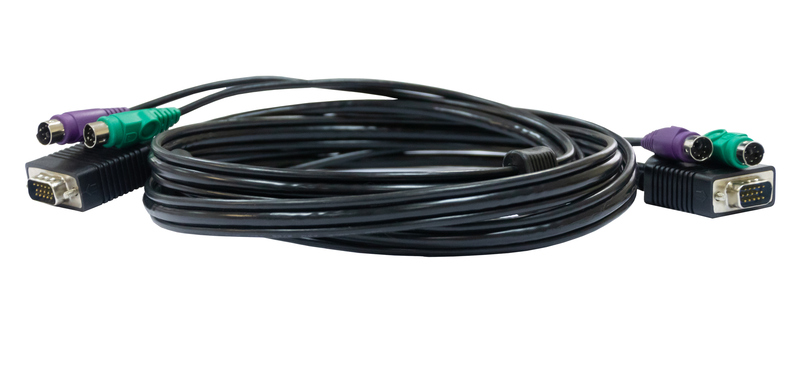

DKVM-CB/Ax
Front view
