DWL-G650EOL EOS

Wireless 108 G CardBus Adapter
Where to buy

Description

Up to 108Mbps Transmission Speed
Unlike most wireless cards, the DWL-G650 provides speeds of up to 108Mbps Turbo mode when used with other D-Link AirPlusXtremeG products. This compares favorably with 802.11b adapters that offer 11Mbps speed. The DWL-G650 provides all these using a single 2.4GHz wireless frequency, eliminating the complexity of dualband networking. This enhanced speed and adoption of 2.4GHz frequency, now available for public use in most countries, plus the mobility and convenience inherent in a wireless LAN, make this adapter an ideal solution for bandwidth intensive WLAN applications.

Compatible With 802.11b
AirPlusExtremeG 802.11g compability with existing wireless LAN standards means that you do not need to change your entire network to maintain connectivity.

Compatible With 802.11b
By maintaining compatibility with your existing wireless network equipment, this adapter lets you upgrade to a higher speed at the pace you want. The DWL-G650 and other 802.11g standard devices can be gradually added to your network, while the rest of your older network remains perfectly connected.

Powerful Performance
To take full advantage of the new 108Mbps network bandwidth, this adapter uses 32-bit high-speed CardBus design to transfer network data with the computer host. This ensures that no bottlenecks take place between your computer's CPU and your network wireless frequency.

Advanced Security
In addition to offering faster data transfer speeds, this adapter also provides the newest, strongest, most advanced security features available today. For home users that do not incorporate a radius server in their networks, security is provided in a convenient, automatic way (when used in conjunction with other 802.11g products). No longer will you have to frequently input a new WEP key to execute security operations. With the DWL-G650, you will automatically receive a new key every time you connect, doing away with the inconvenience of manual WEP key input.

Easy Installation
With hot swap and plug-and-play capabilities, this adapter can be easily installed into a notebook PC for direct connection to any wireless device in the ad-hoc mode or infra-structure mode. Access to your wired Ethernet servers is also provided through your wireless LAN access points.

General features

System Requirements
- 32-bit CardBus slot
- 300MHz processor and 32MB memory (minimum)

Standards
802.11g wireless LAN

Adapter Type
PC Card Type II CardBus

Media Access Control Protocol
CSMA/CA with ACK

Network Architecture Types
- Ad-Hoc mode
- Infrastructure mode

Frequency Range
2.4 - 2.4835 GHz

Operating Channels
- US (FCC): 11
- Europe (ETSI): 13
- Canada (D)C): 11

Network Transfer Rate/Modulation Technique
- 802.11b:
  11Mbps, 5.5Mbps: CCK
  2Mbps: DQPSK
  1Mbps: DBPSK
- 802.11g:
  54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps, 6Mbps:
  OFDM (Othogonal Frequency Division Multiplexing)

Receive Sensitivity (for 802.11b)
- 1Mbps: -92dBm
- 2Mbps: -88dBm
- 5.5Mbps: -86dBm
- 11Mbps: -84dBm

Antenna
Internal patch antenna supporting diversity

Operation Range
- Indoors: up to 100 meters (328 feet)*
- Outdoors: up to 400 meters (1,312 feet)*

* Environmental factors may adversely affect range

Receive Sensitivity (for 802.11g)
- 6Mbps: -88dBm
- 9Mbps: -85dBm
- 12Mbps: -85dBm
- 18Mbps: -81dBm
- 24Mbps: -77dBm
- 36Mbps: -73dBm
- 48Mbps: -71dBm
- 54Mbps: -70dBm

Transmit Output Power (for 802.11b)
1Mbps, 2Mbps, 5.5Mbps, 11Mbps: 16dBm to 18dBm

Transmit Output Power (for 802.11g)
- 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps: 16dBm to 18dBm
- 36Mbps: 15dBm to 17dBm
- 48Mbps: 14dBm to 16dBm
- 54Mbps, 108Mbps: 13dBm to 15dBm

Security
- 64/128/152-bit WEP data encryption
- WPA EAP, WP A PSK



Diagnostic LEDs
- Link
- Activity

Operating Voltage
3.3V

Power Consumption
- Transmission: 500 mA (max.)
- Reception: 380 mA (max.)

Dimensions
118 (L) x 54 (W) x 7.4 (H) mm
(4.64 x 2.13 x 0.29 inches)

Operating Temperature
0 -  55 C (32  -  131 F)

Storage Temperature
-20 - 75 C (-4  - 167  F)

Humidity
Up to 95% non-condensing

Emission (EMI)
- FCC Class B
- CE Class B

Certificates

Order info

DWL-G650   802.11g Wireless LAN CardBus Adapter

Pictures

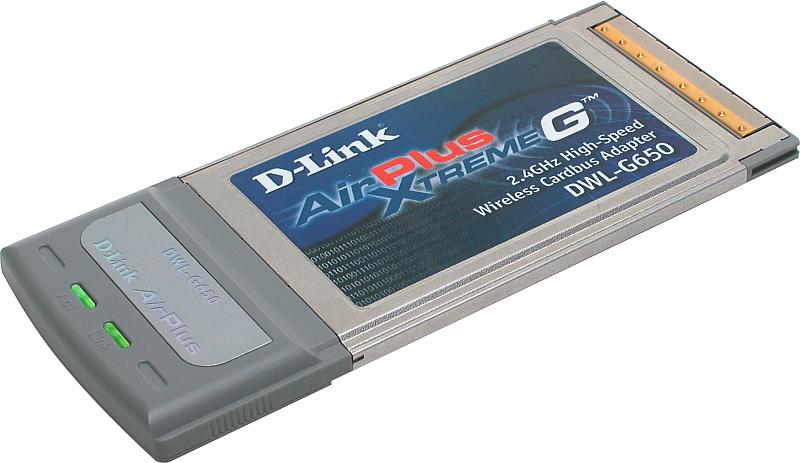

DWL-G650
Front view
