DI-624+EOL EOS

802.11g High-Speed Wireless Cable/DSL Router
Where to buy

Description

Simplified, Cost-saving Broadband Internet Connection
As the most basic function, the router allows you to share your broadband line and cable/DSL modem in your office or home. To let everybody logon, this device automatically creates and assigns an IP number for each user, simplifying every one's logon operation.

Ready Connection
With built-in wireless LAN connections and 10/100Mbps switch, this router provides ready connection for workstations and servers, with or without the network wires. These built-in functions save you the cost and trouble of installing a separate wireless access point and Ethernet switch.

Real Througput 10 Times Faster Than 802.11b
When operating with other D-Link AirPlusG+ devices, the DI-624+ provides a real throughput 10 times faster than the standard 802.11b. This makes the DI-624+ ideal for home and business users implementing high-bandwidth applications such as audio and video streaming, on-line gaming, and for transferring large files over the wireless network.

When operating with other 802.11g devices, the DI-624+ supports data transfer rates of up to 54Mbps. The router provides seamless interoperability with all 802.11b and 802.11b+ wireless equipment. With high data transfer rates and backward compatibility with other standards, the DI-624+ is the ideal wireless solution that offers an upgrade to a fast, new technology while protecting your past investments in hardware.

DMZ Host to Open Public Domain
You can configure any of the built-in LAN ports to function as a DMZ port. A DMZ setting can be applied to a single client (such as a Web server) behind the router to fully expose it to the Internet and ensure complete Internet application compatibility even if the specific port is not known. This allows you to set up web sites and e-commerce business from your office while maintaining protection for the rest of your office LAN.

Access Control
Access to the router from your home/office can be set based on users' MAC addresses and IP addresses. Parental control to filter certain URL and block web sites can be set through URL keywords and domain names. Outbound link scheduling can be made in conjunction with NTP. The router supports the Network Time Protocol (NTP), allowing you to install a time server behind the router to synchronize time for your network environment. This protects you from the risks inherent in obtaining Internet, minimizes security risks from the outside, and maximizes timing accuracy on your network.

Enhanced Wireless Security
To protect transmitted data in the air, the router employs the enhanced 64/128/256-bit industry-standard WEP (Wired Equivalent Privacy) encryption protocol. WPA (Wi-Fi   Protected Access) provides users a higher level of security for data and communications than has previously been available.

UPnP Enabled for Compatibility
The router is designed for easy and robust connectivity among heterogeneous standards-based network devices. Computers can communicate directly with the router for automatic opening and closing of UDP/TCP ports to take full advantage of security provided without sacrificing functionality of on-line applications.

General features

Router
WAN Interface

- 10/100BASE-TX port
- Supports PPPoE for dial-out connection

LAN Interfaces
4 10/100BASE-TX ports

Memory
- SDRAM: 8MB
- Flash: 1MB

Routed Packet Type
IP packets

VPN Support
- IPSec pass-through
- L2TP pass-through
- PPTP pass-through

Internet Gateway Functions
- Network Address Translation (NA T)
- DHCP server (for automatic IP assignment)

PPP Authentication
PAP , CHAP, MS-CHAP

Firewall Features
- Access-list Control
- Stateful Packet Inspection (SPI)
- Domain Filtering
- URL Filtering
- Packet Filtering
- Ping of Death
- IP spoofing
- Intrusion Detection
- Network access rules
- Security event log

Number of DMZ Ports
1 port (user-assignable to any LAN port)

Number of Virtual Server Mappings
13 entries

IP Number Self-identification
Through DHCP client

Configuration & Management
- HTTP web-based configuration
- Network Time Protocol (NTP)

Firmware Upgrade
Web-based

Built-in Wireless LAN
Add-on Hardware

PC Card Type II CardBus
Wireless LAN Standards

- 802.11b
- 802.11b+
- 802.11g

Data Rates
- 802.11g: up to 54Mbps (6/9/12/18/24/36/48/54Mbps)
- 802.11b+: up to 22Mbps
- 802.11b: up to 11Mbps (1/2/5.5/11Mbps)
- Auto-switch to select 802.11g or 802.1 1b mode
- Data rate auto fall-back under noisy environment or longer range distance

Transmission Technology
DSSS

RF Frequency Range
2.4 to 2.4835GHz

Frequency Stability
Within +/- 25ppm

Operating Channels
- 1 to 11 channels (North America)
- 1 to 13 channels (Europe)

Data Modulation Type
DBPSK, DQPSK, CCK, PBCC and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)

Antennas
- 1 detachable external dipole antenna, 2dBi Gain (reverse SMA connector)
- 1 internal antenna, 2dBi Gain

Transmit Output Power
- 802.11g: 14dBm (typical)
- 802.11b: 16dBm (typical)

Receive Sensitivity (for 802.11b)
(typically @PER < 8% packet size 1024 @ 25  C +/- 5  C)
- 22Mbps (PBCC): -80dBm
- 11Mbps (PBCC): -85dBm
- 11Mbps (CCK): -84 dBm
- 5.5Mbps (CCK): -87 dBm
- 2Mbps (QPSK): -90 dBm
- 1Mbps (BPSK): -92 dBm

Receive Sensitivity (for 802.11g)
(typically @PER < 8% packet size 1024 @ 25  C +/- 5  C)
- 54Mbps (OFDM): -71 dBm
- 48Mbps (OFDM): -72 dBm
- 36Mbps (OFDM): -77 dBm
- 24Mbps (OFDM): -80 dBm
- 12Mbps (OFDM): -86 dBm
- 9Mbps (OFDM): -87 dBm
- 6Mbps (OFDM): -89 dBm

Operating Range *
- Indoors: 100 meters (328 feet)
- Outdoors: 400 meters (1,312 feet)

* Environmental factors may adversely affect range

Built-in Fast Ethernet Switch
Wireless Data Security

- WEP 64/128/256-bit data encryption (user-selectable)
- 802.1x security (MD5 and TLS) (in Windows XP only)
- Wi-Fi Protected Access

Standards
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- ANSI/IEEE 802.3 NWay auto-negotiation

Supported Functions
- Full/half duplex (per port)
- MDI/MDIX auto uplink (per port)

Transmission Method
Store-and-forward

MAC Address Learning
Automatic update




Diagnostic LEDs
- Power
- Status
- WAN
- WLAN
- 1, 2, 3, 4 LAN ports

Power Input
- DC 5V +/- 5%, 2.5A
- Through external power adapter

Power Consumption
600 mA (max.)

Dimensions
192 x 117 x 31 mm (device only)

Weight
305 grams

Operating Temperature
0  to 55  C

Storage Temperature
-20  to 65  C

Humidity
95% maximum non-condensing

Regulation Compliance
- US: FCC Part 15 Class B, Sec. 15.247, 15.109
- Europe: ETS 300 328, ETS 300 826, EN60950 and CE-Mark
- Japan: VCCI, Telec/JATE


Certificates

Order info

2.4GHz Wireless Router
DI-624+
  1 10/100BASE-TX port (for DSL/cable modem connection), 802.11g wireless LAN, 4 10/100BASE-TX switch ports


Pictures

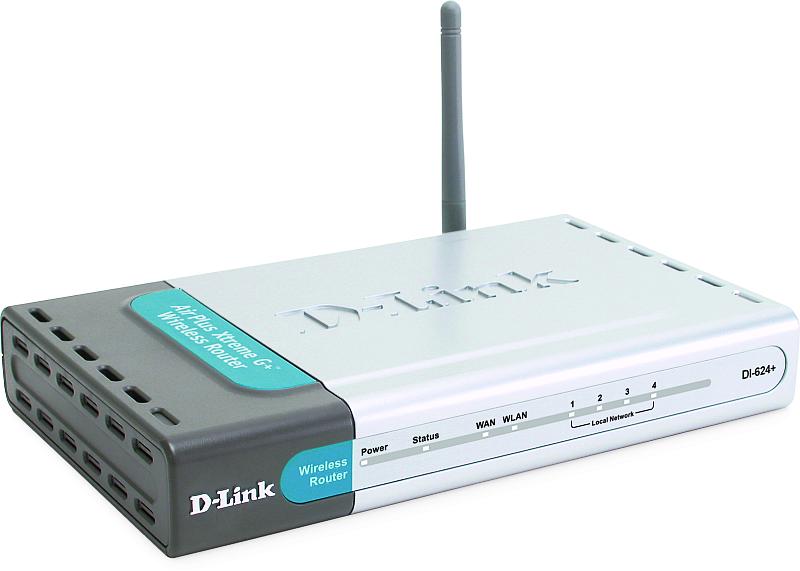

DI-624+
Front view
