DCS-5020LEOL EOS

Wireless 802.11n IP-camera with tilt and rotate the drive, the possibility of night shooting and support service mydlink
Nereden Alınır

Tanımlama

Network Camera DCS-5020L supports a wide range of functions for the effective day and night surveillance in a home or small office. Pan and tilt mechanism provides coverage of a large area surveillance and integrated infrared illumination allows for round the clock surveillance regardless of the lighting conditions. Wireless connectivity allows you to connect to an existing wireless network without the need for network cables, if necessary, extend the range of the network.

Round the clock surveillance
DCS-5020L is a stand-alone camera that does not require any special hardware or software and can work on their own, even without a computer. Using the Camera DCS-5020L and Internet connection lets you send a notification to snapshots or video clips via e-mail when motion or sound. You can set up motion detection area, for example, the entrance to the building, and you can set a threshold sound level above which the camera will be fixed, for example, to hear a baby crying or the noise generated by an attacker. Built-in infrared illumination allows to conduct surveillance at night at a distance of 8 meters.

Constant remote access to video using a cloud service mydlink
Support Camera DCS-5020L mydlink ™ service makes monitoring your home or office easier, more convenient and allows you to stay connected regardless of their location. To view the video from the camera can use the Web-site mydlink, as well as additional applications mydlink mobile devices with iOS or Android. Mydlink app allows the user using Wi-Fi, 3G or 4G connection to quickly and easily view the video from the camera.

Clear images at different angles
Thanks to the pan / tilt and digital zoom IP-Camera DCS-5020L provides an overview of a large area from different angles and 4x digital zoom for detailed image. You can also configure the automatic movement of IP-cameras DCS-5020L between preset positions, allowing you to patrol a large area.

Large range of a wireless network with 802.11n standard
The wireless connection 802.11n camera DCS-5020L can be placed anywhere in the home or small office. You can also use the repeater mode to extend the range of an existing wireless network.

Multifunctional surveillance system
The included DCS-5020L software D-ViewCam allows you to extend the functionality of the camera to create a complete video surveillance system. With the D-ViewCam can centrally manage multiple network cameras (up to 32 cameras and up to 64 users), to record a wide range of functions, including recording triggered sensors on a schedule or manually.

Genel Özellikler


Fiziksel Özellikler
Hardware profile camera
• 1/5-dyuymovy VGA CMOS-sensor with progressive scan
• Distance of infrared light: 8 m
• Minimum illumination: 0 lux with IR lighting
• Built-in ICR-filter
• 4x digital zoom
• Fixed focal length: 2.2 mm
• Aperture: F2.0
• Viewing angle:
• 66,22 (horizontal)
• 49,08 (vertical)
• 77,04 (diagonal)
• Exposure Time: 1/15 to 1/15000 sec.
• Built-in microphone

Image characteristics
• Setting the image size and quality, frame rate and bit rate
• The timings and paste text
• Customizable windows for motion detection
• Adjust brightness, color saturation, contrast

Video Compression
• Compression formats H.264/MJPEG
• JPEG for still images

Video Resolution
640x480, 320x240, 160x112 and 30 frames / s

Audio Compression
PCM

Connections
• Port 10/100 BASE-TX Ethernet
• Wireless 802.11n

Pan / Tilt
• Rotation: from -170 to 170 (of 340)
• Tilt:  -25 to 95 (of 120)
• Speed: 16 per second
• Setting step: turn - 1/2/3/4/5 (default) / 10/15/20/25/30 per click
• Tilt: 1/2/3/4/5 (default) / 10/15/20/25/30 per click

Network
Network Protocols
• IPv4, ARP, TCP, UDP, ICMP
• DHCP-Client
• NTP-Client (D-Link)
• DNS-client
• DDNS-Client (D-Link)
• SMTP-client
• FTP-client
• HTTP-server
• PPPoE
• UPnP Port Forwarding
• LLTD

Safety
• Password authentication
• Encryption HTTP

Advanced Features
System requirements for Web-based interface
• Operating System: Microsoft Windows XP, Vista, 7, 8
• Web-browser: Internet Explorer 7, Firefox 12, Safari 4, Chrome 20 or higher with Java support

Event Management
• Motion detection
• Detection of sound level
• Event notification and downloading snapshots / video clips via email or FTP

Remote access
Remote management
Interface to configure, available through the Web-browser

Support for mobile devices
• mydlink Lite app for iOS and Android
• mydlink + app for iOS and Android

System Requirements D-ViewCam ™
• Operating System: Microsoft Windows 7/Vista/XP
• Web-browser: Internet Explorer 7 or above
• Protocol: Standard TCP / IP

The software features D-ViewCam ™
• Remote management / control of up to 32 cameras
• Viewing images on a single screen: up to 32 cameras
• Supports all management functions available through the Web-based interface
• Optional sensor triggered recording, schedule or manually


Fiziksel Özellikler

Weight
• Device: 292.4 g
• Stand: 60.8 g

Nutrition
12 VDC 1 A, 50/60 Hz

Power consumption
8.64 W

Temperature
• Operating: 0 to 40 C
• Storage: -25 to 70 C

Humidity
• Operating: 20% to 85% (non-condensing)
• Storage: 5% to 95% (non-condensing)

Certifications
• CE
• CE LVD
• FCC
• C-Tick

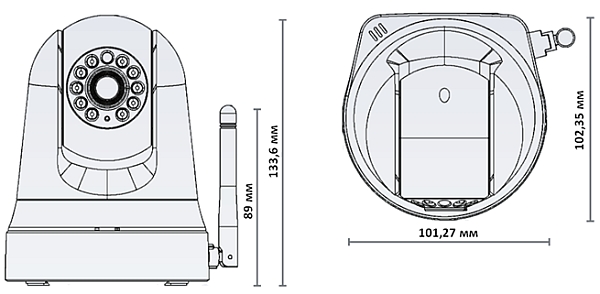

Measurements
• 102,35 x 101,27 x 133,6 mm (Camera only)
• 102,35 x 101,27 x 230 mm (including bracket)
