DWL-6000APEOL EOS

Multimode 5GHz/2.4GHz (802.11a/802.11b) Dual Band Wireless Access Point
Nereden Alınır

Tanımlama

The new D-Link AirPro DWL-6000AP Multimode Wireless Access Point simultaneously connects to both 802.11a and 802.11b wireless networks. With a total of eleven non-overlapping channels, the DWL-6000AP is the ideal solution for any network administrator who needs to expand the capacity of the wireless network and allow users on different frequencies to connect.

Featuring the latest dual-band technology in 2.4GHz and 5GHz, it is also a best-of-both-worlds solution for those operating wireless networks in public areas where the extra bandwidth can attract additional paying customers. This is especially applicable to wireless networks in high traffic areas such as airports, coffee shops, shopping centers, sporting venues, and university campus deployments.

At transfer rates of up to 72Mbps in the 5GHz frequency range and 22Mbps in the 2.4GHz frequency range, users connected to the DWL-6000AP will enjoy faster downloads and email communication.

The DWL-6000AP combines the latest advancements in 802.11b silicon chip design from Texas Instruments, utilizing their patented Digital Signal Processing™ technology along with impressive high-speed performance and features of the Atheros 802.11a chip design.

In addition to bridging 802.11a and 802.11b wireless networks, the D-Link AirPro DWL-6000AP can bridge to wired networks with its integrated 10/100 Ethernet port.

For more secure communication, the DWL-6000AP supports user-selectable encryption settings — up to 152-bit WEP on the 5GHz band and up to 256-bit WEP on the 2.4GHz band. With its web-based configuration and AP Manager, the DWL-6000AP is easy to install and manage.

Genel Özellikler

Standards
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.3
- IEEE 802.3u

Media Access Control
CSMA/CA with ACK

Ethernet Port
10/100Mbps Fast Ethernet port

Operating Channels (802.11a)
- US & Canada: 12
- Europe: 8
- Japan: 4

Operating Channels (802.11b+):
- US & Canada: 11
- Europe: 13 (Except Spain and France)
- Japan: 14

Data Rates
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
- 802.11b+: 1, 2, 5.5, 11, 22Mbps

Data Security
- 802.11a: 64, 128, 152-bit WEP (Wired Equivalent Privacy) Encryption   with Dynamic Keying
- 802.11b+: 64, 128, 256-bit WEP (Wired Equivalent Privacy) Encryption
- Access Control List

Frequency Range (802.11a)
- US & Canada: 5.15 - 5.350GHz & 5.725 - 5.825GHz
- Japan: 5.15 - 5.25GHz
- Europe: 5.15 - 5.35GHz

Frequency Range (802.11b+)
2.4 - 2.497GHz

Radio & Modulation Technology (802.1 1a)
- BPSK
- QPSK
- 16 QAM
- 64 QAM
- OFDM

Radio & Modulation Technology (802.1 1b+)
- Packet Binary Convolutional Coding (PBCC)
- Direct Sequence Spread Spectrum (DSSS)
- 11-chip Barker sequence

Antennas
- 5dBi dipole antenna for 5GHz frequency
- 2dBi dipole antenna for 2.4GHz frequency

Transmitter Output Power
- 802.11a: 16 dBm (54Mbps)
- 802.11b+: 18 dBm (11Mbps)

Receiver Sensitivity
- 802.11a: -66 dBm (54Mbps)
- 802.11b+: -83 dBm (11Mbps)

Operating Range
Up to 100 m (328 feet) indoors

Device Management
- Web-Based management
- Access Point Manager

Diagnostic LEDs
- Power
- 10M Link/Act
- 100M Link/Act
- 802.11a WLAN
- 802.11b WLAN


Fiziksel Özellikler

Power Input
- DC 5V, 2.5A
- External AC power adapter

Dimensions
91.2 (L) x 54 (W) x 36.4 (H) mm
(9.25 x 6.25 x 1.50 inches)

Weight
500 grams (1.1 lbs)

Operating Temperature
0  -  55  C (32  - 131  F)

Storage Temperature
-25  -  65  C (-77  -  140  F)

Humidity
5% - 95% RH non-condensing

Emission
- FCC Class B
- CE Class B

Safety
- CSA60950
- UL60950
- IEC60950

Çözümler

Sipariş Bilgisi

DWL-6000AP  IEEE 802.11a/b Dualband Wireless LAN Access Point

Görseller

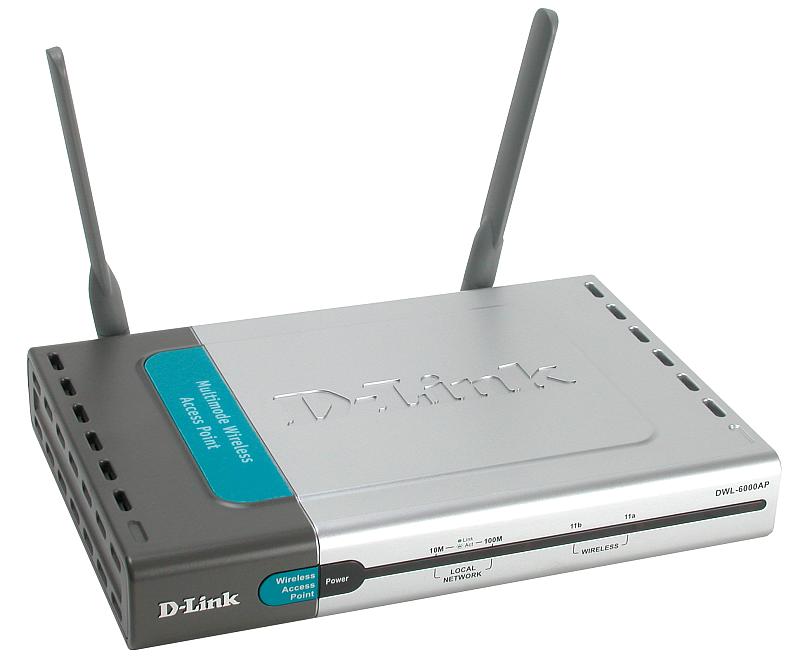

DWL-6000AP
