DCS-6616מיועד לפרויקטים

מצלמת מעקב רשת בצורת כיפה בעלת תזוזה מהירה עם זום אופטי X12


Round the clock
High-speed dome network camera with 12x optical zoom DCS-6616 provides an overview of a large territory, including in low light conditions. With built-in sensor Sony Super HAD-II 1/4 "CCD IP-Camera DCS-6616 can transmit high-resolution video 650 TVL with excellent image quality. Built-ICR-filter allows the camera to obtain high quality images in bright conditions, and in the dark. In the daytime, ICR-filter is in place and does not transmit infrared radiation, which provides high-quality images. At night, the ICR-shifting filter, which allows the camera to use infrared light for shooting in low light conditions.
Multi-functional PTZ (tilt / pan / zoom)
IP-Camera DCS-6616 has a wide range of functions PTZ, providing an overview of a large area. With 360 degrees of rotation can easily observe the surrounding area, and 12x optical zoom with auto focus delivers image detail. The speed of rotation varies and is proportional to the scaling factor for the accurate control of camera movement. PTZ Preset point allow the DCS-6616 to move on them and monitor the automatic mode.
The flexibility to connect
The DCS-6616 is equipped with inlet and outlet ports for connection to external devices such as IR sensors, switches and alarm relays. The camera has audio input and output ports, and video output for direct connection to a TV to watch in real time.
Applications WDR (Wide Dynamic Range)
WDR function provides clear images even under backlight behind the object of observation, where the light intensity can vary considerably. This makes the DCS-6616 an ideal solution for surveillance in high-contrast lighting. For example, when installing the unit in the room DCS-6616 adapts to the conditions of intense sunlight, falling from a window, which makes this camera ideal for security.
Multiple video streams
DCS-6616 supports simultaneous transmission of video streams in formats H.264, MPEG-4 and MJPEG, to provide high quality images and with efficient use of bandwidth. MJPEG format ensures the integrity of files and is ideal for situations requiring high image detail. H.264 video compression and MPEG-4 files possible to obtain small size, which is useful for long-term record, or when used in networks with low bandwidth. In addition, DCS-6616 supports multicast transmission of H.264 and MPEG-4, which allows users to browse videos by connecting to the multicast streams in the network.

מאפיינים כללים

Hardware profile camera
• Sensor Sony Super HAD-II 1/4 "CCD
• Resolution of 650 TVL
• Minimum illumination: 0.1 lux (color), 0.01 lux (B / W)
• Built-in ICR-filter
• Electronic shutter: 1 to 1/100000 seconds
• The ratio of "signal-to-noise"> 50 dB (automatic gain control (AGC off)
• 12x optical zoom
• Fixed lens with a focal length from 3.8 to 45.6 mm
• Aperture: F1.6 to F2.7 from
• Angle:
   from 4,49 ° to 52,8 ° (horizontal)
   from 3,40 ° to 39,7 ° (vertical)
   from 55,4 ° to 65,4 ° (diagonal)
A hardware profile PTZ
• Rotation: 360 °
• Tilt: 10 ° to 170 °
• Manual adjustment of speed from 1 ° to 80 ° per second
• Preset points: 256 points
• Precision Pan / Tilt: 0,225 °
• The speed pan / tilt: 10 ° to 400 ° per second
• The number of independent paths in mode Sequence: 8
• The number of independent paths when working in Auto Pan: 4
• The number of independent paths in mode Cruise: 8
• The speed of rotation is proportional to the slope and the scaling factor
• Resume after power loss
• Functions of Home: Preset, Sequence, Auto Pan, Cruise
• Automatic revolution: mechanical / digital / off
• The slow shutter digital
• Pause
• Flip image
Functions of the image
• Setting quality and image size, frame rate and data rate
• Timestamps and paste text
• Customizable windows for motion detection
• 16 custom masks areas of private
• Setting the white balance, shutter speed, brightness, color saturation, contrast and sharpness
Video Compression
• Video compression formats H.264/MPEG-4/MJPEG
• JPEG for still images
Video Resolution
• NTSC: 720 x 480 resolution, 352 x 240 176 x 120 at speeds up to 30 frames / s
• PAL: 720 x 576, 352 x 288 176 x 144 on the frame rate to 25 frames / s
Audio support
• G.726
External interfaces of the device
• Port 10/100 BASE-TX Ethernet
• 8 input sensor alarm
• a sensor alarm output
• Audio in / out
• Video Output
Network Protocols
• IPv4, TCP / IP, UDP, ICMP, DHCP-Client, NTP-client (D-Link), DNS-Client, DDNS-client (D-Link), SMTP-client, FTP-client, HTTP / HTTPS, Samba- client, PPPoE, port forwarding UPnP, RTP / RTSP / RTCP, filtering IP-addresses, 3GPP, IGMP, according ONVIF
• Protection of the Administrator account and user group
• Authentication by password
System control
System Requirements for Web-based interface
• Operating System: Microsoft Windows 7/Vista/XP/2000
• Browser: Internet Explorer, Firefox, Netscape, Opera
Event Management
• Motion detection
• Event notification and download stop-kadrov/videoklipov via HTTP, SMTP or FTP
• Support for multiple HTTP, SMTP and FTP-servers
• Multiple event notifications
• Several ways to backup
Remote management
• Setting up a Web-browser
• Obtaining and maintaining stop-kadrov/videoklipov on the local hard drive or NAS via Web-browser
Support for mobile devices
• System Windows 7/Vista/XP, Pocket PC or mobile phone with support for playback of 3GPP
System Requirements D-ViewCam ™
• Operating System: Microsoft Windows 7/Vista/XP
• Web-browser: Internet Explorer 6 or above
• Protocol: Standard TCP / IP
The software features D-ViewCam ™
• Remote management / control of up to 32 cameras
• View up to 32 cameras on one screen
• Supports all management functions provided in Web-interface
• Schedule of events for the operation or manual entry

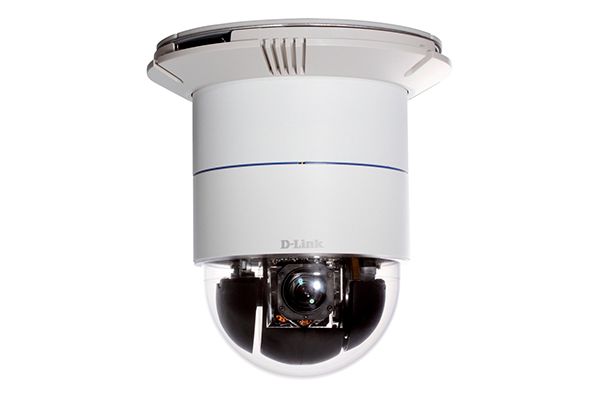

מראה מקדימה
