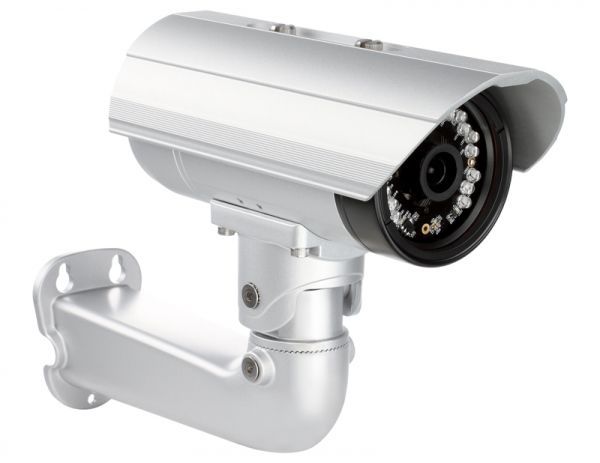

DCS-7413מיועד לפרויקטים

מצלמת מעקב חיצונית עם אפשרות צילום לילי באיכות Full HD


Full HD camcorder with the ability to night mode for outdoor use D-Link DCS-7413 is an ideal solution for creating a system of professional high-definition video, and security for small, medium and large enterprises. Highly sensitive two-megapixel CMOS-sensor with progressive scan technology provides excellent image quality in various lighting conditions. The compact design, "all in one" makes the camera ideal for safe installation and requires no additional accessories.
High-quality video
To maximize bandwidth efficiency and improve image quality, DCS-7413 compresses video in real time, using the MPEG-4 and MJPEG, and H.264, which creates a small file size and makes it suitable for long-term recording high detail or for use in networks with low bandwidth. In addition, DCS-7413 supports three separate profiles for simultaneous transmission of video in real time and record. This property provides a wide range of cameras for security purposes, such as monitoring of public places to detect incidents and coordinate the response, control of restricted areas, deterring criminal activities or monitoring of assets. In addition, the bandwidth requirements can be adjusted in real time over the network, and the recorded video files can be saved to a Network Attached Storage (NAS) or on a SD.
Continuous monitoring
Built-in infrared LEDs automatically according to the lighting conditions, allowing the camera to record videos even in low light or darkness. This function enables the camera to record a clear color image during daytime and black and white in low light conditions. DCS-7413 can detect moving objects in total darkness at a distance of 30 meters. Equipped with a powerful integrated circuit, the camera compresses video in real-time formats, H.264, MPEG-4 and MJPEG. The totality of these elements makes the DCS-7413 an ideal solution for day surveillance.
Reliable management software
With the camera DCS-7413 includes software D-ViewCam - ready set of software for video, allowing you to view, manage and record up to 32 cameras on a single computer. Video recording and email alerts can be started by motion or by triggering event with digital input devices to inform administrators of unusual activity.
The DCS-7413 is equipped with built-in PoE standard 802.3af, simplifies installation by providing power and network connectivity, one Ethernet-cable, and thus eliminates the need for drilling and routing the additional power cables. In addition, the digital input and output allow you to connect external devices such as IR sensors, switches and signal relay

מאפיינים כללים

Hardware profile camera
• 1/2 inch, 7-megapixel CMOS-sensor with progressive scan technology
• The distance IR illumination: 30 m
• Minimum illumination: 0 lux with IR lighting
• Built-in ICR-filter
• 10x digital zoom
• Focal length: 4.3 mm
• Aperture: F2.0
• Viewing angle:
  • 73,5 ° (horizontal)
  • 42,5 ° (vertical)
  • 83,3 ° (diagonal)
Camera Body
• Weatherproof housing (standard IP-66)
• Bracket for cable
Image details
• Setting the image quality and size, frame rate and bit rate
• Timestamps and paste text
• Customizable windows for motion detection
• Configurable zone private masks
• Set the shutter speed, brightness, color saturation, contrast and sharpness
Video Compression
• Compression formats H.264/MPEG-4/MJPEG
• H.264/MPEG-4 multicast streaming
• JPEG for still images
Video Resolution
• 16:9 - 1920 x 1080 (up to 15 frames / s), 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 frames / s
• 4:3 - 1440 x 1080 (up to 15 frames / s), 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240, 176 x 144 up to 30 frames / s
Audio support
• G.726
• G.711
Interfaces to external devices
• Port 10/100 BASE-TX Fast Ethernet with support for 802.3af PoE
• Card slot for SD / SDHC
• Audio-vhod/vyhod
• The connector DI / DO, 12 V DC output
Network Protocols
• IPv6
• IPv4
• TCP / IP
• DHCP-Client
• NTP-Client (D-Link)
• DNS-client
• DDNS-client (D-Link)
• SMTP-client
• FTP-client
• Samba-client
• UPnP port forwarding
• Filtering of IP-addresses
• QoS
• CoS
• Multicast
• Security Administrator and user group
• Password authentication
• Encryption HTTP and RTSP
System control
• System requirements for Web-based
• Web-browser: Internet Explorer, Firefox, Chrome or Safari
Event management
• Motion detection
• Event notification and download stop-kadrov/videoklipov via email or FTP
• Support for multiple FTP and SMTP servers
• Multiple event notifications
• Several ways to backup
Remote management
• Creating and maintaining stop-kadrov/videoklipov to a local hard drive or NAS via Web-browser
• Interface settings, available through Web-browser
Operating system
• Windows 7/Vista/XP/2000
System Requirements D-ViewCam ™
• Operating System: Microsoft Windows 7/Vista/XP
• Web-browser: Internet Explorer 7 or above
• Protocol: Standard TCP / IP
Software features D-ViewCam ™
• Remote control
• Monitoring / control up to 32 cameras
• Viewing images on a single screen up to 32 cameras
• Supports Web-management interface
• Recording Options for triggering a sensor or manually




מראה מימין
מראה מקדימה
מראה משמאל
מראה מקדימה
מראה מימין
מראה משמאל
