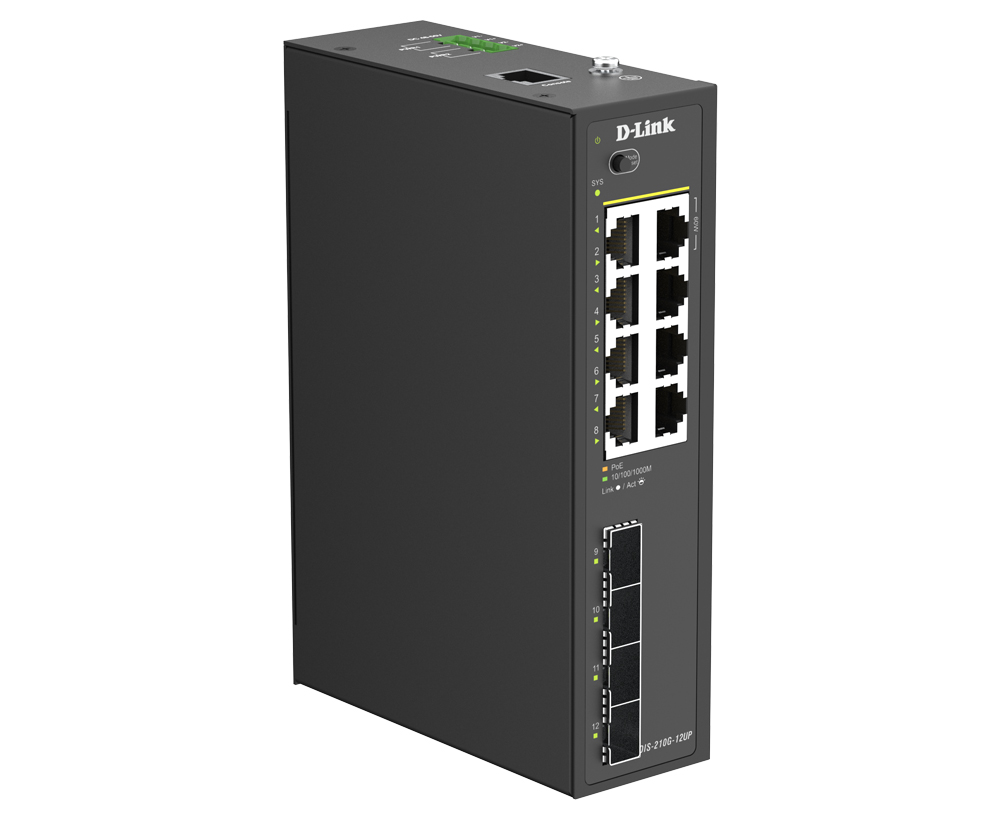

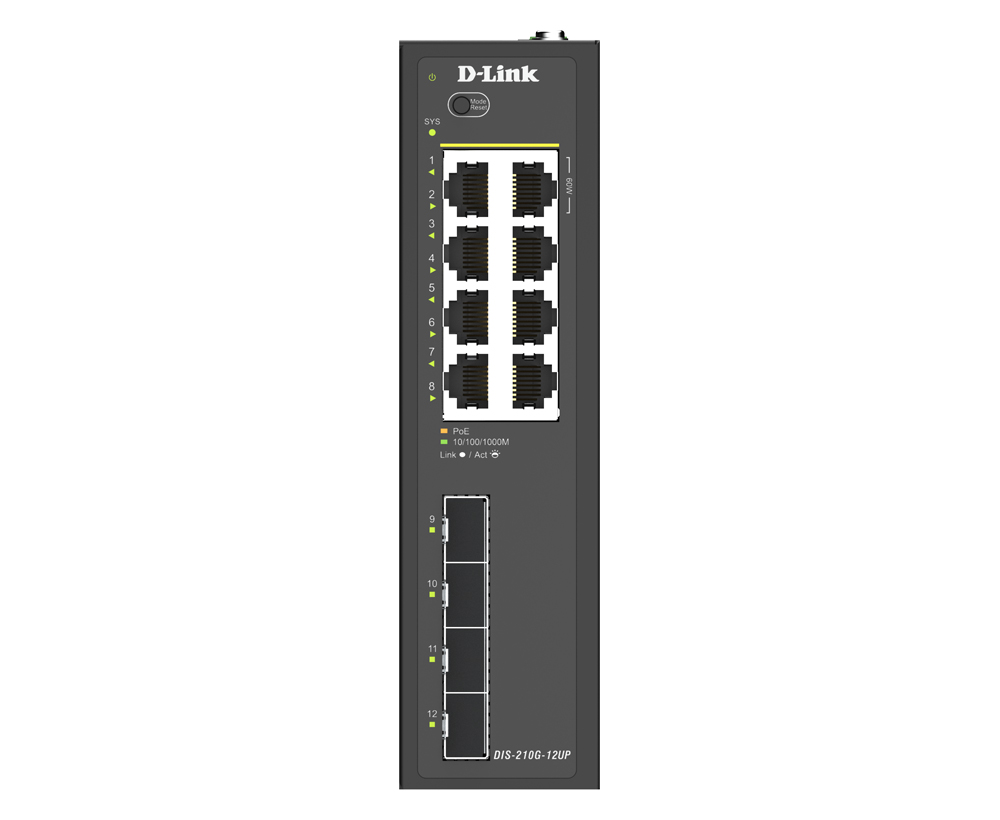

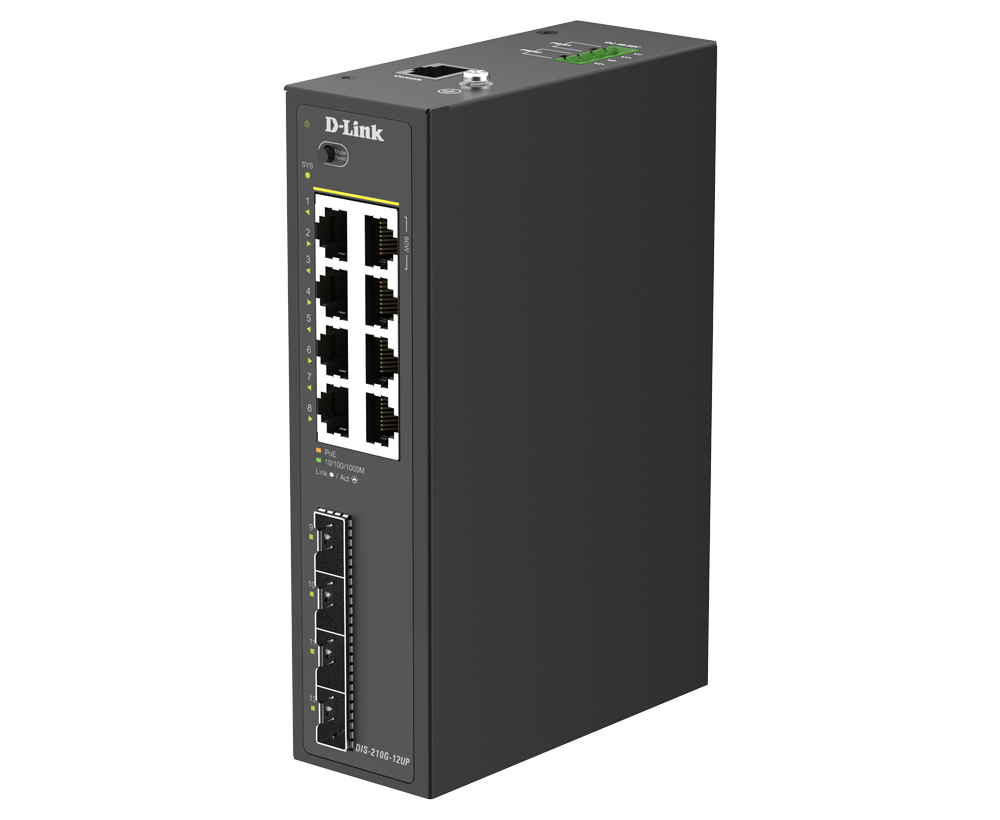

The DIS-210G-12UP Layer 2 Gigabit Industrial Managed Switch is equipped with 6 30 W PoE-capable 10/100/1000Base-T ports, 2 60 W PoE-capable 10/100/1000BASE-T ports and 4 SFP ports. This switch features a robust design making it ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. The DIS-210G-12UP switch furthermore integrates advanced management and security functions to provide a complete industrial networking solution.



The DIS-210G-12UP switch is housed in a highly resistant IP40-rated metal casing to protect it from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-210G-12UP from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of the DIS-210G-12UP while also being able to operate in a wider temperature range of up to 75 °C. With DIN rail mounting capability, the DIS-210G-12UP can fit seamlessly into your industrial equipment infastructure.



Additionally, the DIS-210G-12UP features high-capacity 6 kV surge protection on all copper ports to help prevent damage to the switch and connected devices caused by sudden power surges and lightning strikes. The built-in surge protection of up to 6 kV can mitigate the damage to the switch from both indoor and outdoor devices and network connections by absorbing the excess energy while still letting through the amount of power required for the switch to operate normally. This increases network reliability, reduces repair costs, and removes the need for replacement hardware in the event of an electrical surge or lightning strike.

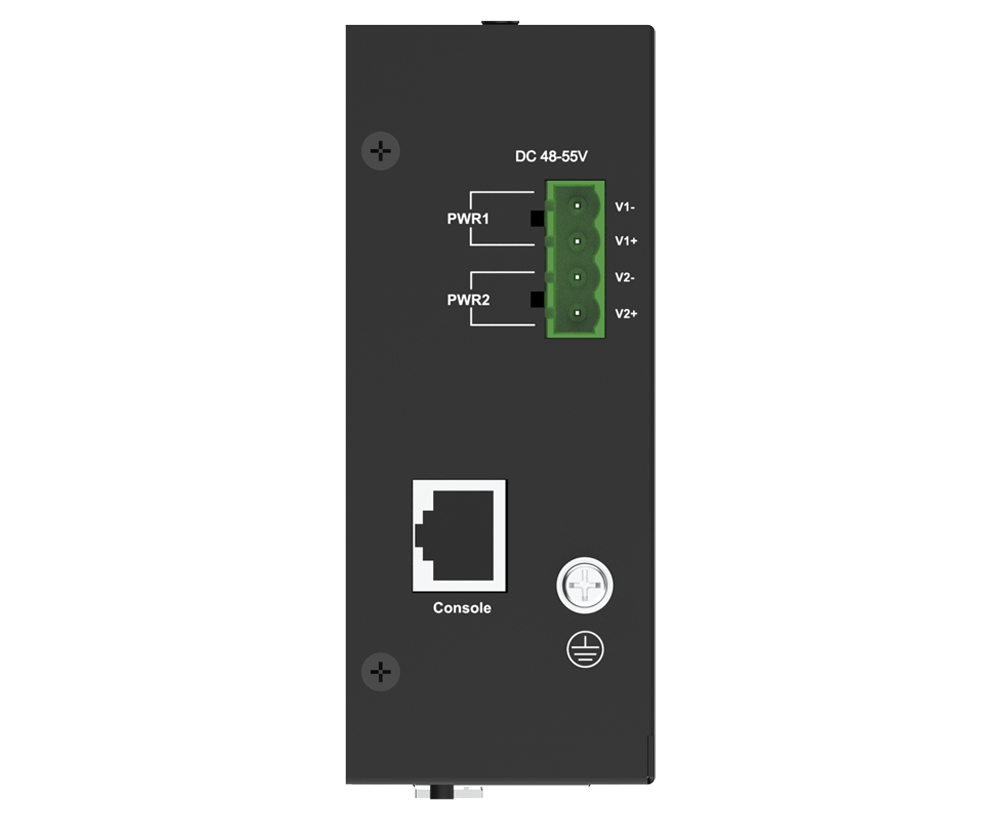

The DIS-210G-12UP supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the device continues to operate in the event of a primary power supply failure.



The DIS-210G-12UP features loopback detection and a web-based management interface to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. The web-based interface provides a user-friendly way for network administrators to manage the switch down to the port level. The interface can be accessed from a web browser, allowing the switch to be controlled from any PC that is connected to the network.



The DIS-210G-12UP is PoE-ready switch with a total PoE budget of 240 W. The DIS-210G-12UP provides 6 PoE ports using 802.3af and 802.3at, and 2 ports using 802.3bt 60 W PoE standards. This effectively reduces deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.
