DNH-100

Nuclias Connect Controller for Managing Access Points and Switches (up to 100 devices)

Description

Key features
• Standalone device with pre-loaded Nuclias Connect software
• Discovery, management, configuration, and monitoring of up to 100 devices via a single controller
• Controller for managing access points and switches without additional server costs
• Traffic Reporting & Analytics
• Searchable Event Log
• 802.1X and external RADIUS, POP3, LDAP servers
• Remote Config. & Batch Config.
• Administration via Web interface, SSH, Telnet
• 19" Rack Mountable

The DNH-100 Nuclias Connect is a hardware controller with pre-loaded Nuclias Connect software.
It is designed to support small-to-medium business by providing network administrators the capability to manage D-Link Nuclias Connect access points through one single device.
DNH-100 is equipped with one 10/100/1000Base-T port, one USB 3.0 port (offers 5V / 1A power), one MicroSD Slot and one RJ45 Console port.
The DNH-100 comes with pre-installed Nuclias Connect software, providing network management, monitoring, and security functionalities.
The DNH-100 Nuclias Connect can currently manage up to one hundred APs per unit with the potential to extend to other Nuclias Connect products in future firmware updates.

Flexibility to Meet Your Needs
DNH-100's auto-managed AP discovery and single point management allow customers to acquire an enterprise class system without the burden of executing massive and complex configurations.
With a robust and comprehensive security detection system, the controller also enables managed APs to block potential attacks from unauthorized users and devices, especially for wireless environments.
Network Security & Data Privacy
In addition to standard security features, the device supports a captive portal that prevents client access until authentication is completed.
Authentication can be performed via a local user database (username/password) or through external authentication servers such as RADIUS, POP3, and LDAP.

General features

Hardware Design
CPU
• Quad-core (up to 1.5 GHz)

RAM
• 2 GB, DDR3

Flash
• 16 GB

Interfaces
• 1 x 10/100/1000Base-T
• 1 x USB 3.0 (offers 5V / 1A power)
• 1 x MicroSD Slot
• 1 x RJ45 Console

LEDs
• Power
• Link/Act/Speed

Button
• Reset

Power
• Power connector (AC)

Mounting
• Desktop
• 19" rackmount

Performance
Standards
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• 802.3x Flow Control
• Auto MDI/MDIX

Network Management
• Up to 100 APs

Authentication Method
• 802.1X
• Port Authentication
  - Local Database (username/password)
  - POP3 Server
  - RADIUS Server
  - LDAP Server
  - PIN Code Authentication
  - MAC Address Authentication
• MAC-based/IP-based ACLs
• Wireless Client Isolation

Advanced Wireless Features
• VLAN
• Bandwidth Optimization
• Auto RF Management:
  - Automatic Transmit Power Control (TPC)
  - Automatic Channel Selection (ACS)
• Time-based Wireless Operation
• IGMP Snooping
• Wireless Client Isolation
• Multi-SSID
• Band Steering
• Fast Roaming (only with APs supporting Fast Roaming)
• Airtime Fairness

Management
• Device discovery (L2/L3)
• Centralised AP management based on profiles
• AP firmware/software updates
• Scheduled firmware/software updates and configuration deployment for APs
• AP LED on/off control

Monitoring
• Dashboard
• Topology and floor plan visualization
• Reporting system
• Logging system
• Automatic log backup to microSD card or external Syslog server
• Event notifications, including email alerts

Network Management
• Free Nuclias Connect mobile app for iOS and Android
• Russian-language Web user interface
• SSH
• Telnet
• Controller firmware/software updates via PC, USB drive, or FTP server
• Configuration and system log backup
• Export of configuration and log backups to PC or USB drive
• Configuration restore from saved file on PC or USB drive
• Role-based administration with multiple access levels

Physical Parameters
Dimensions (W × D× H)
• 190 x 100 x 31 mm

Weight
• 529 g (without micro SD card)

Environmental
Power
• Input: 100 to 240 V AC, 50/60 Hz

Power Consumption
• Max: 6.5 watts

Temperature
• Operating: 0 to 40 °C
• Storage: -20 to 65 °C

Humidity
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 95% (non-condensing)

Package Content
• Controller DNH-100
• Power Cable
• Rack-mount kit
• Quick installation guide

Supported Devices
Wireless Access Points
• DAP-2620
• DAP-2622
• DAP-X2850
• DAP-3666
• DAP-X3060
• DAP-X3060OU
• DAP-2695
• DAP-2680

Switches
• DGS-1100-10MPV2
• DGS-1100-10MPPV2
• DGS-1100-16V2
• DGS-1100-24PV2
• DGS-1100-24V2
• DGS-1100-26MPV2
• DGS-1100-26MPPV2
• DGS-1210-10
• DGS-1210-10MP
• DGS-1210-10P
• DGS-1210-20
• DGS-1210-26
• DGS-1210-28
• DGS-1210-28MP
• DGS-1210-28P
• DGS-1210-52
• DGS-1210-52MP
• DGS-1210-08P
• DGS-1210-16
• DXS-1210-10TS
• DXS-1210-12SC
• DXS-1210-12TC
• DXS-1210-16TC

Certifications
• FCC
• CE
• UL
• BSMI

Certificates

Order info

DNH-100   Nuclias Connect Controller for Managing Access Points and Switches (up to 100 devices)

Pictures

DNH-100/A

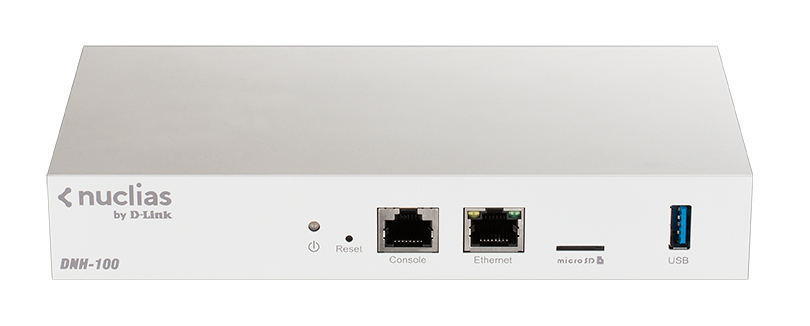

Front view

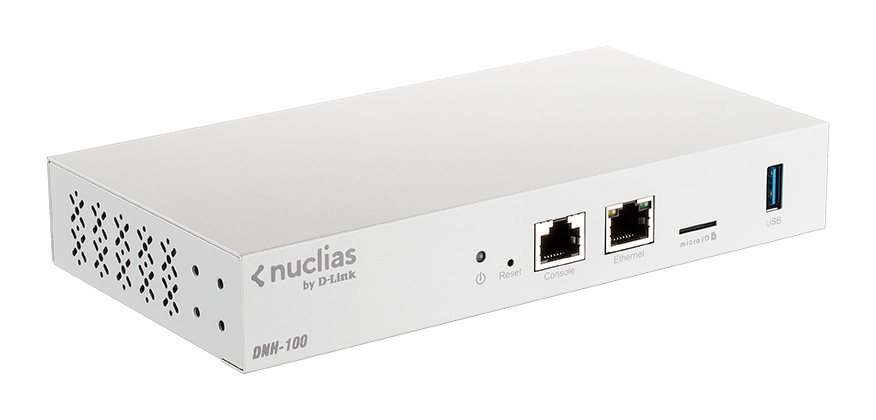

View from the right
