DWR-953V2New
LTE Cat4 Wi-Fi AC1200 Router
Description
D-Link’s DWR-953V2 LTE Cat4 Wi-Fi AC1200 Router is equipped with 802.11ac and 802.11n dual-band capabilites, maximizing users wireless flexibility. In addition to modile broadband access, the DWR-953V2 provides a physical WAN port that supports a wide variety of connection types, including; PPPoE, static IP, dynamic IP (DHCPclient), PPTP, and L2TP. Upholding D-Link’s safety and security standards, the DWR-953V2 supports firewall implementaion as well as flexible filter rules in order to protect every device on your network. With a robust web-based UI, users can easily change, backup or restore network settings if necessary.
Fast Mobile Internet and Wireless AC
The LTE Cat4 Wi-Fi AC1200 Router lets you connect to your 4G LTE mobile network with throughput speeds of up to 150 Mbps 1 , giving you the speed you need for fast, responsive Internet access. In addition to this, the DWR-953V2 uses wireless AC technology meaning that connected wireless clients can reach speeds of up to 1200 Mbps1, utilizing the DWR-953V2 dual band mode while benefitting from the enhanced range and reliability of the 802.11ac wireless standard.
Reliable, Uninterrupted Internet Connection
The Gigabit Ethernet WAN port allows you to attach a DSL or cable modem as the primary or backup link, while auto-failover ensures an uninterrupted connection by automatically connecting to your 4G LTE network whenever the WAN link is lost. The built-in QoS management feature also prioritizes traffic to ensure that the most important data receives optimum bandwidth.
Easy to Set Up and Use
Set up your network in minutes; the DWR-953V2 comes equipped with an easy-to-follow setup to get you up and running right away. Older wireless devices utilize 802.11g/b bands are still compatible with the LTE Cat4 Wi-Fi AC1200 Router, enabling you to be online and get
started in no time, without any issues.
1Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.
General features
Processor
• Realtek RT8197FS
RAM
• 128MB, DDR2, built in processor
Built-in modem
• Qualcomm MDM9225

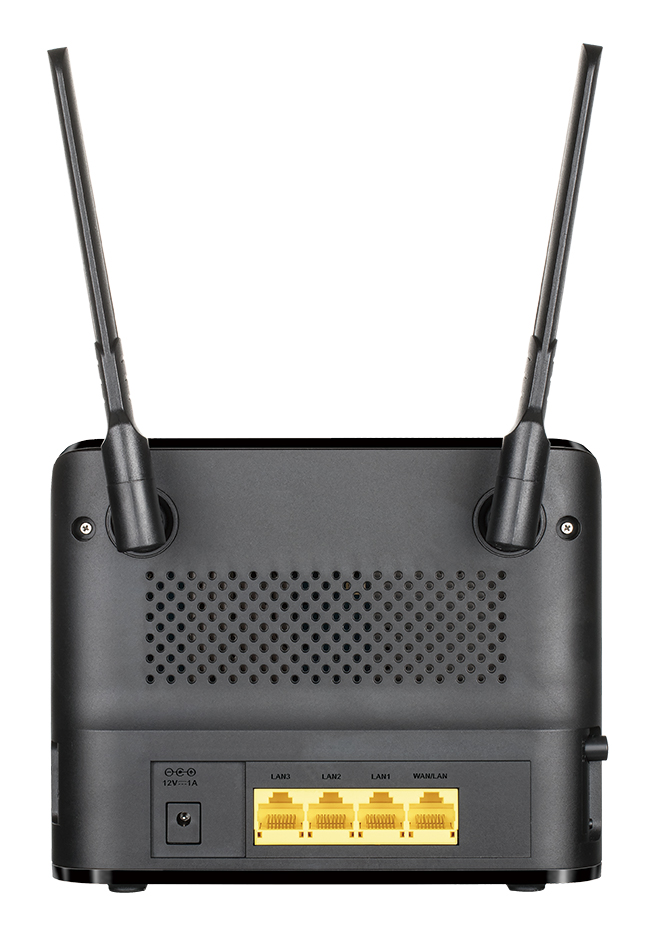

Interfaces
• 1 10/100/1000BASE-T WAN port
• 3 10/100/1000BASE-T LAN ports

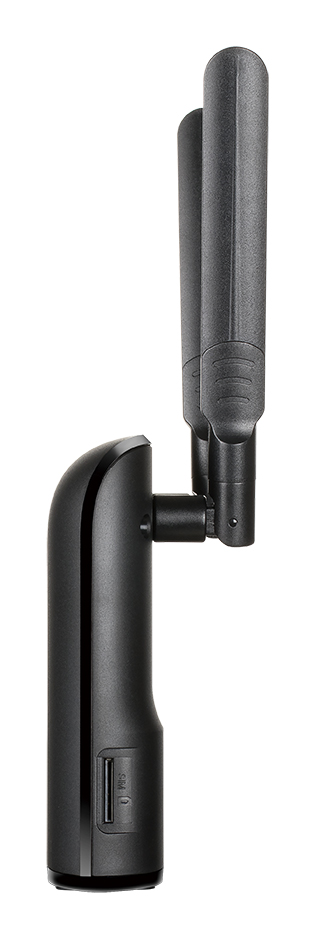

• Slot for SIM card

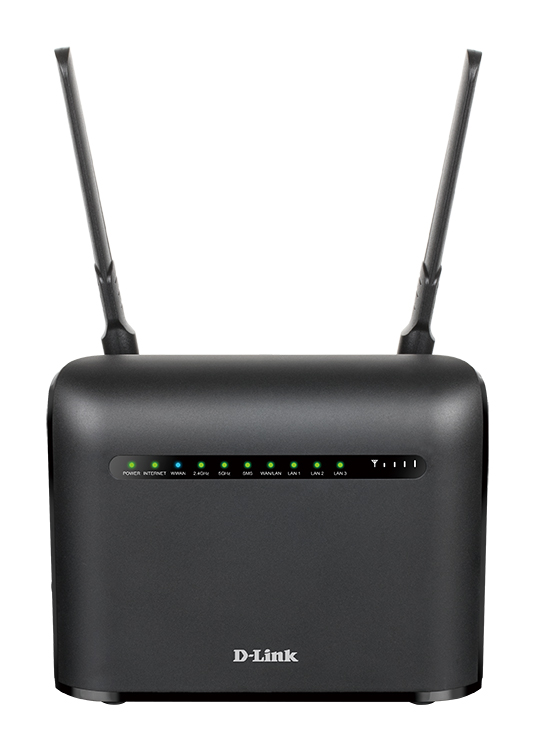

LEDs
• POWER
• INTERNET
• 5GHz
• 2.4GHz
• WAN/LAN
• SMS
• LAN 1
• LAN 2
• LAN 3
• SIGNAL STRENGTH

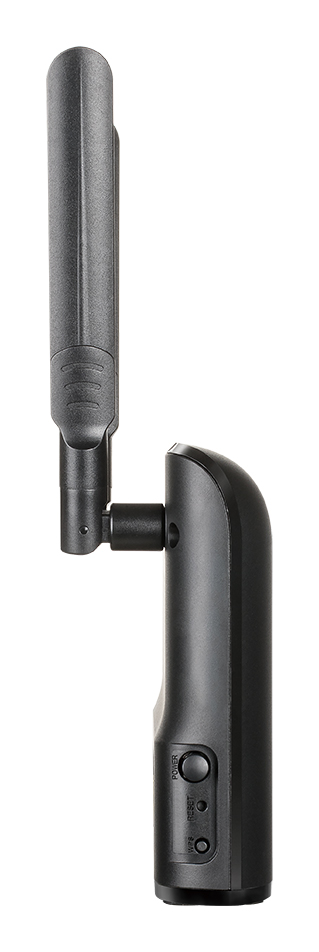

Buttons
• ON/OFF button to power on/power off
• RESET button to restore factory default settings
• WPS button to set up wireless connection

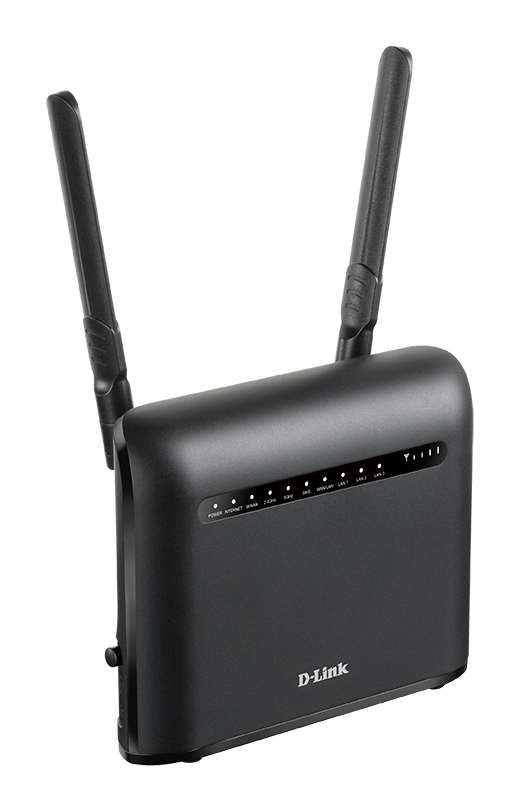

Antenna
• Two detachable LTE/4G antennas (3dBi gain)
• Two internal Wi-Fi antennas
Power connector
• Power input connector (DC)
Software
WAN connection types
• Mobile Internet
• Static IP / Dynamic IP
• PPPoE
• PPTP
• L2TP
Firewall functions
• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
• MAC filter
• URL filter
VPN
• IPsec/PPTP/L2TP/PPPoE pass-through
Management and monitoring
• Multilingual web-based interface for configuration and management
• Firmware update via web-based interface
LTE Module Parameters
Supported frequencies
• Power Class 3
• LTE
FDD-LTE Band:1/3/7/8/20/28
TDD-LTE Band: B38/40
• UMTS
Band 1/8 (2100/900 MHz)
• GSM/GPRS
Band 3/8 (1800/900 MHz)
Functions
• Auto connection to available type of supported network (4G/3G/2G)
• Auto configuration of connection upon plugging in SIM card
• Sending/receiving/reading/removing SMS messages
Wireless Module Parameters
Standards
• IEEE 802.11a/b/g/n/ac
• IEEE 802.3
• IEEE 802.11u
Frequency range
The frequency range depends upon the radio frequency regulations applied in your country
• 2400 ~ 2483.5MHz
• 5150 ~ 5250MHz
Wireless connection security
• WEP
• WPA/WPA2 (Personal)
• МАС filter
• WPS (PBC/PIN)
Wireless connection rate
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54Mbps
• IEEE 802.11b: 1, 2, 5.5, and 11Mbps
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps
• IEEE 802.11n (2.4GHz/5GHz): from 6.5 to 300Mbps (from MCS0 to MCS15)
• IEEE 802.11ac (5GHz): from 6.5 to 867Mbps (from MCS0 to MSC9)
Transmitter output power
The maximum value of the transmitter output power depends upon the radio frequency regulations applied in your country
5GHz
• 802.11а:
11dBm (+/-2dBm) at 54Mbps
12dBm (+/-2dBm) at 48Mbps
13dBm (+/-2dBm) at 36Mbps
14dBm (+/-2dBm) at 24Mbps
15dBm (+/-2dBm) at 18~6Mbps
• 802.11n(HT20/40):
11dBm (+/-2dBm) at MCS7/15
12dBm (+/-2dBm) at MCS6/14
13dBm (+/-2dBm) at MCS5/13
14dBm (+/-2dBm) at MCS4/12
15dBm (+/-2dBm) at MCS3~0/11~8
• 802.11ac(VHT-20/40/80):
11dBm (+/-2dBm) at MCS9
12dBm (+/-2dBm) at MCS8
13dBm (+/-2dBm) at MCS7
13dBm (+/-2dBm) at MCS6
14dBm (+/-2dBm) at MCS5
14dBm (+/-2dBm) at MCS4
15dBm (+/-2dBm) at MCS3
15dBm (+/-2dBm) at MCS2
16dBm (+/-2dBm) at MCS1
16dBm (+/-2dBm) at MCS0
2.4GHz
• 802.11b
16dBm (+/-2dBm) at 11~1Mbps
• 802.11g
14dBm (+/-2dBm) at 54Mbps
15dBm (+/-2dBm) at 48Mbps
16dBm (+/-2dBm) at 36Mbps
17dBm (+/-2dBm) at 24Mbps
18dBm (+/-2dBm) at 18~6Mbps
• 802.11n (HT20/40):
12dBm (+/-2dBm) at MCS7/15
13dBm (+/-2dBm) at MCS6/14
14dBm (+/-2dBm) at MCS5/13
15dBm (+/-2dBm) at MCS4/12
16dBm (+/-2dBm) at MCS3~0/11~8
Receiver sensitivity
5GHz
• 802.11ac(VHT-80):
-76dBm at MCS0
-73dBm at MCS1
-71dBm at MCS2
-68dBm at MCS3
-64dBm at MCS4
-60dBm at MCS5
-59dBm at MCS6
-58dBm at MCS7
-53dBm at MCS8
-51dBm at MCS9
802.11ac(VHT-40):
-79dBm at MCS0
-76dBm at MCS1
-74dBm at MCS2
-71dBm at MCS3
-67dBm at MCS4
-63dBm at MCS5
-62dBm at MCS6
-61dBm at MCS7
-56dBm at MCS8
-54dBm at MCS9
802.11ac(VHT-20):
-82dBm at MCS0
-79dBm at MCS1
-77dBm at MCS2
-74dBm at MCS3
-70dBm at MCS4
-66dBm at MCS5
-65dBm at MCS6
-64dBm at MCS7
-59dBm at MCS8
-57dBm at MCS9
• 802.11n(HT-40):
-79dBm at MCS0/8
-76dBm at MCS1/9
-74dBm at MCS2/10
-71dBm at MCS3/11
-67dBm at MCS4/12
-63dBm at MCS5/13
-62dBm at MCS6/14
-61dBm at MCS7/15
802.11n(HT-20):
-82dBm at MCS0/8
-79dBm at MCS1/9
-77dBm at MCS2/10
-74dBm at MCS3/11
-70dBm at MCS4/12
-66dBm at MCS5/13
-65dBm at MCS6/14
-64dBm at MCS7/15
• 802.11a:
-82dBm at 6Mbps
-81dBm at 9Mbps
-79dBm at 12Mbps
-77dBm at 18Mbps
-74dBm at 24Mbps
-70dBm at 36Mbps
-66dBm at 48Mbps
-65dBm at 54Mbps
2.4GHz
• 802.11b
-79dBm at 11~1Mbps
• 802.11g:
-82dBm at 6Mbps
-81dBm at 9Mbps
-79dBm at 12Mbps
-77dBm at 18Mbps
-74dBm at 24Mbps
-70dBm at 36Mbps
-66dBm at 48Mbps
-65dBm at 54Mbps
• 802.11n(HT-40):
-79dBm at MCS0/8
-76dBm at MCS1/9
-74dBm at MCS2/10
-71dBm at MCS3/11
-67dBm at MCS4/12
-63dBm at MCS5/13
-62dBm at MCS6/14
-61dBm at MCS7/15
802.11n(HT-20):
-82dBm at MCS0/8
-79dBm at MCS1/9
-77dBm at MCS2/10
-74dBm at MCS3/11
-70dBm at MCS4/12
-66dBm at MCS5/13
-65dBm at MCS6/14
-64dBm at MCS7/15
Modulation schemes
• 802.11b: DSSS/BPSK/QPSK/CCK
• 802.11g: OFDM/DSSS/BPSK/QPSK/CCK
• 802.11n: BPSK/QPSK/16 QAM/64 QAM/DBPSK/DQPSK/CCK
• 802.11ac: BPSK/QPSK/16 QAM/64 QAM/256 QAM
Physical Parameters
Dimensions (L x W x H)
• 154 x 122 x 32 mm
Weight
• 275 g
Operating Environment
Power
• Output: 12V DC, 1A
Power consumption
• 12watt (max.)
Temperature
• Operating: from 0 to 40 °C
• Storage: from -10 to 70 °C
Humidity
• Operating: from 10% to 90% (non-condensing)
• Storage: from 0% to 95% (non-condensing)
Delivery Package
• Router DWR-953V2
• Power adapter DC 12V/1A
• Ethernet cable
• Quick Installation Guide
Certification
• CE
• RoHS
1Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.
Certificates
Order info
DWR-953V2/E3GR4HD
(Rev. A1)
|
LTE Cat4 Wi-Fi AC1200 Router
|
