10/100BASE-TX to 100BASE-FX SC Single-mode Media Converter (TX 1550 nm, RX 1310 nm, 20 km)


D-Link’s Standalone Media Converters turn an Ethernet connection into fiber, allowing for ultra-fast long distance connections. Installation of a Standalone Media Converter is simple, and allows you to tap into fiber speeds with ease. Instead of requiring an investment in an entire chassis, the standalone series is able to provide the same high-quality conversion on a unit-by-unit basis. The standalone nature of these means that you can use save space and cut costs while still extending your network over long distances up to 60 km on a fiber-optic line. In addition to all models supporting 10/100 Mbps Half/Full-duplex, the DMC-G01LC also allows for 1000 Mbps Full-Duplexing, letting you truly maximize your network’s potential.
Extend Your Network
Fiber-optic speeds are critical to success, but twisted-pair cabling can only go so far. Using D-Link’s converters you can change a twisted-pair Fast Ethernet connection into a single-mode or multi-mode fiber connection that can go much farther. Converters for distances of anywhere from 2 km to 60 km allow you to optimize your selection.
No Wasted Space
Its compact size fits anywhere and doesn’t require an entire rack. Measuring just 70 mm wide by 95 mm long by 25 mm high, the total volume of one unit is just 0.166 liters. This allows for convenient installation wherever it is needed, especially in limited space environments such as telecommunication cabinets or a distribution box.
Plug & Play
The media converters offered by D-Link include several industry-standard technologies that make them easy to operate, like 802.3u/x/ab*. Auto-MDI/MDIX and Auto-Negotiation make sure your cable connection functions at the highest possible speed while remaining compatible. There’s no management software to configure – simply connect the converter.
* DMC-G01LC only

General features

Max. Forwarding Rate
• 10 M: 14, 880 pps
• 100 M: 148,800 pps
Forwarding mode
• Cut-Through
Packet Buffer Memory
• 128 Kbits
Switching Capacity
• 2 Gbps
• 1 x 10/100 Mbps port
• IEEE 802.3u
• IEEE 802.3x
• Auto-Negotiation for each port
• Half/Full-Duplex operation at 10/100 Mbps
• Back pressure at Half-Duplex operation
• Wire speed reception and transmission
Physical Parameters
External Power Adapter
• Switching 5V/1A Level V Power Adapter, ErP compliant
Power Consumption (Max.) at 240 V
• DC 1.42 W
• AC 2.17 W
Power Consumption (Standby) at 240 V
• DC 0.96 W
• AC 1.55 W
Heat Dissipation (Max.)
• 7.40 BTU/h
MTBF (hours)
• 482,583
Operation Temperature
• 0° to 50°C
Storage Temperature
• -10° to 70°C
Operating Humidity
• 10 to 90%
Storage Humidity
• 5 to 90%
• EMI: CE class A, FCC class A, VCCI class A, BSMI class A


Order info

DMC-F20SC-BXD  10/100BASE-TX to 100BASE-FX SC Single-mode Media Converter (TX 1550 nm, RX 1310 nm, 20 km)

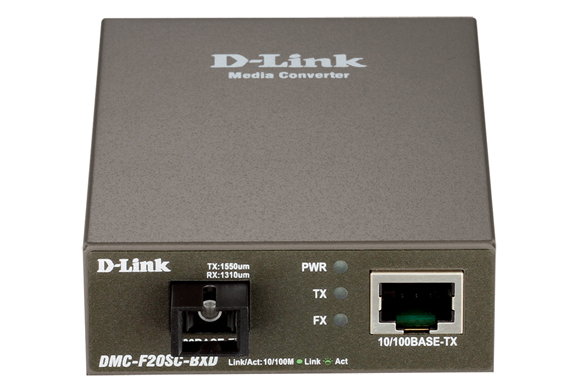

Front view

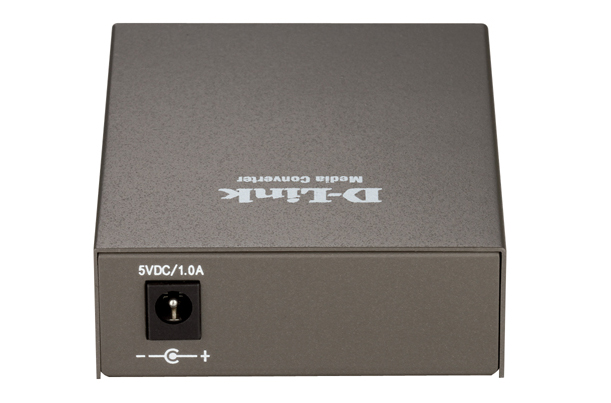

Back view
