DGE-560T

PCI Express Gigabit Ethernet Network Adapter

Description

The high performance DGE-560T PCI Express Gigabit Ethernet Network Adapter offers increased bandwidth and connection reliability than standard PCI network cards. This adapter supports data rates of up to 2 Gbps in full-duplex mode, eliminating the bottleneck that exists in 32-bit and 64-bit PCI bus architectures.

802.1Q VLAN Tagging
The DGE-560T supports the onboard screening of 802.1Q VLAN Tagged Ethernet frames, allowing to create several subnets for each server and isolate devices within each VLAN from the other part of a network for security enhancement and traffic management.

General features

Chipset
• RTL8111H

Interfaces
• One 10/100/1000Base-T port with RJ-45

Installation Slot
• PCI Express x1

LEDs
• 10/100/1000 (Link/Activity)

Network Cables
• Ethernet: UTP cat. 3 or above (100 m max.)
• Fast Ethernet/Gigabit Ethernet: UTP cat. 5 (100 m max.)

Standards and Functions
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• 802.3x Flow Control
• Auto MDI/MDIX adjustment
• 802.1Q VLAN Tagging

Duplex Mode
• Full/Half-duplex for 10/100 Mbps
• Full-duplex for 1000 Mbps

Protocol
• CSMA/CD

OS Support
• Microsoft Windows 10 (32/64), 8/8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000
• Microsoft Windows Server 2012, 2008 R2, 2003 (32/64)
• Mac OS 10.x
• Linux 2.4.x and later

Physical Parameters
Dimensions (L x W x H)
• 75 x 20 x 120 mm

Bar Height
• 120 mm

Temperature
• Operating: 0 to 70 °C
• Storage: 0 to 80 °C

Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing

Certificates

Order info

DGE-560T  PCI Express Gigabit Ethernet Network Adapter

Pictures

DGE-560T/D

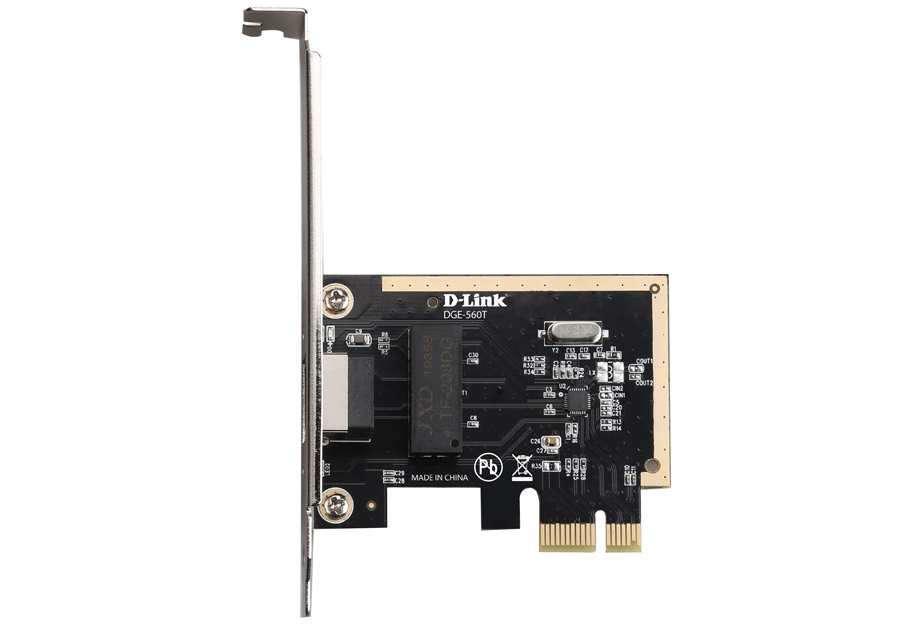

Front view
