2-Port KVM Switch with HDMI and USB Ports
Where to buy


The D-Link DKVM-210H 2-port KVM switch with HDMI and USB ports allows you to manage two computers with one monitor, one keyboard and one mouse. The DKVM-210H requires no driver installation and can function without external power adapter connection by powering from USB port of your PC (the power adapter1 can be used when connecting external device, for example, USB-disk, to the USB Type-A port of the DKVM-210H). This KVM switch supports hot-plugging - you don't need to turn your computers off before installing the device. The DKVM-210H allows you to switch between computers quickly and easily using the buttons located on the front panel, keyboard hot keys or smart desktop controller. The DKVM-210H supports autoscan mode, which provides automatic switching to the next PC after the scan interval expires.
1Not included in the package contents.

General features

Ports for connecting KVM cables
• 2 HDMI ports
• 2 USB Type-B ports
Ports for connecting management console
• Monitor (local): HDMI
• Keyboard (local): USB Type-A
• Mouse (local): USB Type-A
KVM cable connectors for connecting PC
• HDMI connector
• USB Type-A connector
Ports for connecting external devices
• 2 USB Type-A ports
Port for connecting smart desktop controller
• Mini-USB Type-B port
• 2 port LEDs for connected PCs
• 2 port switching buttons
• Metal
General Specifications
Connected PCs
• 2
Autoscan mode
• Yes
Switching between PCs
• Switching buttons on the front panel
• Hot keys
• Smart desktop controller
Sound notification of switching
• Yes
HDMI version
• HDMI 2.0 HDCP 2.2
• Up to 4096x2160 / 3840x2160 @ 60 Hz (4:2:0)
Physical Parameters
Dimensions (L x W x H)
• 155 x 66 x 21 mm
Environmental Conditions
Power supply
• From USB port on PC
• Power adapter1 when using external devices
• Operating: 0 to 50 °C
• Storage: -20 to 60 °C
• 0% to 80% non-condensing
1Not included in the package contents.


Order info

DKVM-210H/A1  2-Port KVM Switch with HDMI and USB Ports

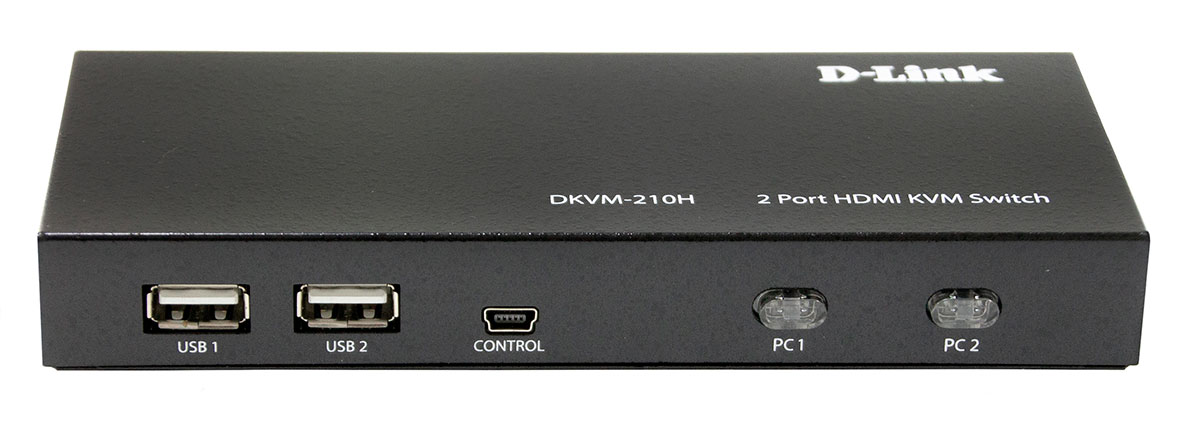

Front view

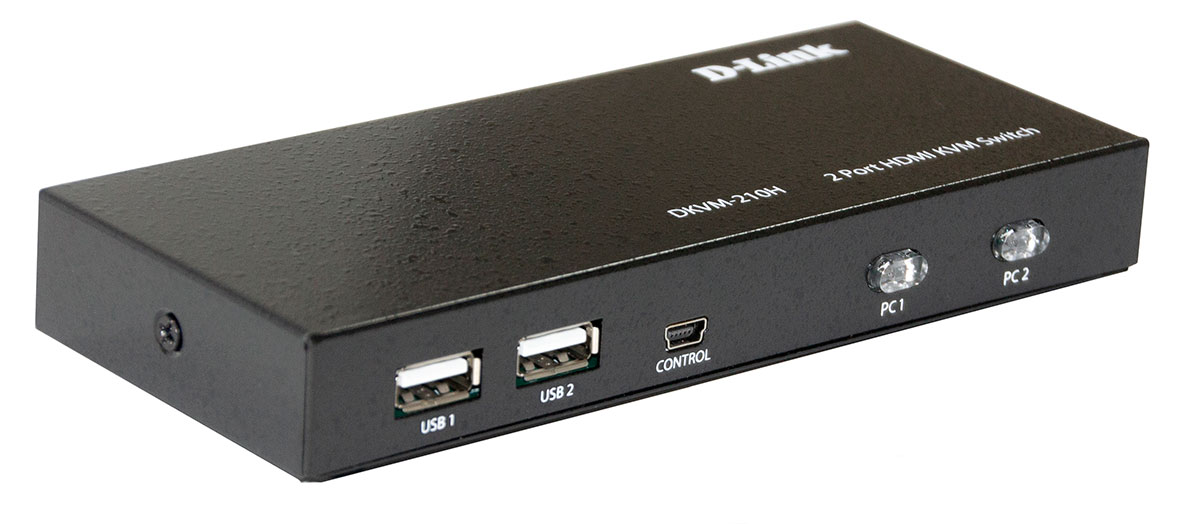

View from the right

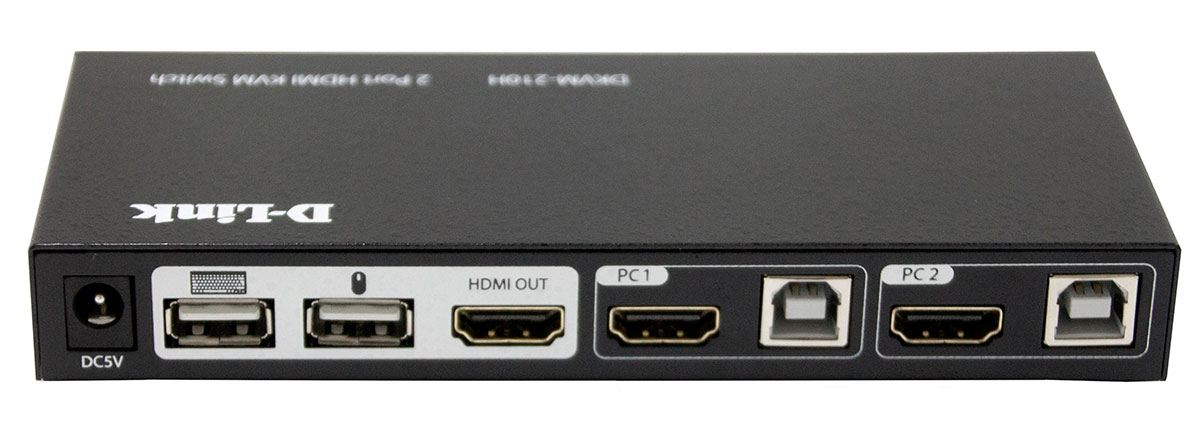

Back view
Back view
