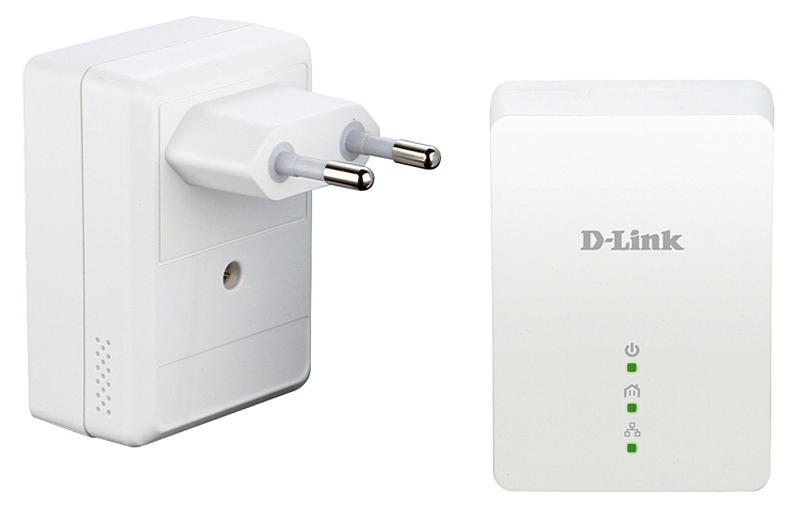

DHP-209 AV Başlangıç kiti (DHP-208AV iki mini-adaptör hattı AV içerir)Nereden Alınır
Starter kit PowerLine AV DHP-209AV includes two mini-adapter, DHP-208AV, that conform to the HomePlug AV and use existing home electrical wiring to create a network or extend your existing network. 1 Each adapter is connected to a power outlet, turns it into an access point and allows access to digital media devices, game consoles, print servers, computers and network storage devices throughout your home without the need for additional wiring.
Easy installation and safety
Adapters are included in the starter kit DHP-209AV, plug directly into a wall outlet and do not require additional cables. Thus, using in-house any power outlet, you can instantly gain access to the network connection. Expand your home network by connecting multiple devices from the most distant points of the house. Organize share an Internet connection with a media center in the living room or connect computers in different rooms to share files without running new cabling. For ease of installation encryption key can be quickly configured with the click of a button. The adapter supports 128-bit AES encryption to protect your network from unauthorized connection to the line and to ensure the safe operation of the network.
High speed data transmission over existing electrical wiring
PowerLine AV technology provides data transfer rates of up to 200 Mbit / s to provide high bandwidth for today's demanding multimedia applications. Create a network for Internet and file sharing using existing home wiring.
Automatic energy saving
Adapters are included in the starter kit DHP-209AV, supports power saving mode to reduce it when the network is not used. If within a period of time not being transmitted or received, the adapters will automatically go into standby mode, reducing power consumption by more than 70%, and providing automatic power savings without sacrificing performance.
The compact size and discreet design
Due to its small size data adapters to easily fit into the home environment and will not be evident. Stylish white shell devices makes them invisible, and due to the small size, access to nearby food outlets will not be difficult.
Power connector (depending on country)
Port 10/100 Mbit / s Fast Ethernet with RJ-45
• IEEE 802.3
• IEEE 802.3u
• HomePlug AV
• IEEE 1901
128-bit AES data encryption
The modulation scheme PowerLine
Symbol OFDM modulation
From 2 MHz to 30 MHz
• PowerLine: Up to 200 Mbit / s (PHY rate) 2
• Ethernet: 10/100 Mbit / s (Auto-Negotiation)
65,6 x 47,8 x 27,7 mm
100-240 VAC, 50/60 Hz
• Operating: 0 to 40 C
• Storage: -20 to 65 C
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 95% (non-condensing)
• CE / LVD
